Iscar ISCAR 5507011

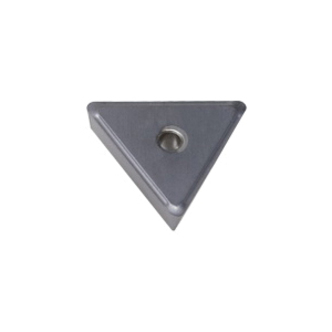

Iscar 5507011 1-Sided Turning Insert, ANSI Code: TPMR 321-PF IC9250, TPMR Insert, Material Grade: M, P, 321 Insert, Triangular Shape, 16 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC9250
Invoice description:
Tpmr 321-pf Ic9250
Factory Order

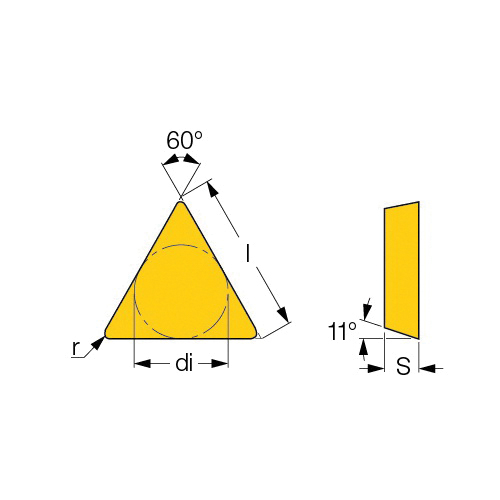

Iscar Turning Insert, 1-Sided, TPMR Insert, 321 Insert, Triangular, 3.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.18 mm Thickness, 16 Seat, Positive Rake, PF Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC9250, ANSI Code: TPMR 321-PF IC9250, ISO Code: TPMR 160304-PF IC9250, 60 deg Included Angle, 11 deg Relief Angle, Carbide, CVD-TiCN+alpha Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Positive flank insert with a positive chipformer
- Low cutting forces, especially suitable for internal turning
- IC9250 grade a tough substrate with a cobalt enriched layer combined with MTCVD TiCN and a thick alpha Al2O3 CVD coating
- Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeTPMR 321-PF IC9250
ChipbreakerPF
Corner Radius0.4 mm
FinishCVD-TiCN+alpha Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size321
Insert StyleTPMR
ISO CodeTPMR 160304-PF IC9250
Manufacturers GradeIC9250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle11 deg
Seat Size16
ShapeTriangular
Thickness3.18 mm
Type1-Sided
Additional Information
Country of OriginIL
