Iscar ISCAR 5506986
Iscar 5506986 ISOTURN Turning Insert, ANSI Code: SCMT 3-1-SM IC907, SCMT Insert, Material Grade: H, K, M, N, P, S, 3-1 Insert, Squared Shape, 09 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Scmt 3-1-sm Ic907
Factory Order

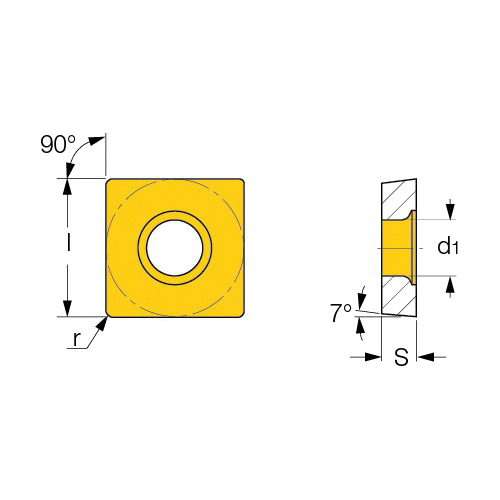

Iscar Turning Insert, Series: ISOTURN, SCMT Insert, 3-1 Insert, Squared, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 9.52 mm Width, 9.52 mm Length, 09 Seat, Positive Rake, SM Chipbreaker, 0.4 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC907, ANSI Code: SCMT 3-1-SM IC907, ISO Code: SCMT 09T304-SM IC907, 90 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive flank
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Chipbreaker on one side with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeSCMT 3-1-SM IC907
ChipbreakerSM
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter4.4 mm
Included Angle90 deg
Inscribed Circle9.52 mm
Insert Size3-1
Insert StyleSCMT
ISO CodeSCMT 09T304-SM IC907
Length9.52 mm
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut3 mm
RakePositive
Relief Angle7 deg
Seat Size09
SeriesISOTURN
ShapeSquared
Thickness3.97 mm
Width9.52 mm
Additional Information
Country of OriginIL
