Iscar ISCAR 5506975

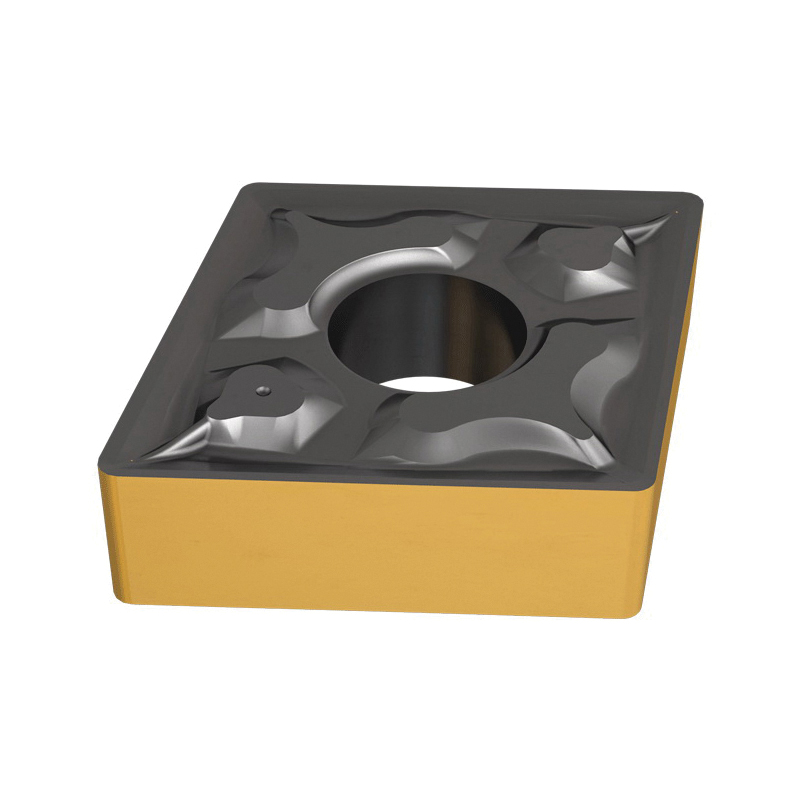

Iscar 5506975 ISOTURN Turning Insert, ANSI Code: CNMG 120408-TF, CNMG Insert, 120408 Insert, Rhombic Shape, Positive Rake, For Use On Carbon Steel, Alloy Steel, Stainless Steel and High Temperature Alloys, Manufacturers Grade: IC9250
Invoice description:
Cnmg 432-tf Ic9250
Factory Order
Iscar Turning Insert, Series: ISOTURN, CNMG Insert, 120408 Insert, Rhombic, 12.7 mm Inscribed Circle, 4.76 mm Thickness, Positive Rake, 0.8 mm Corner Radius, Manufacturers Grade: IC9250, ANSI Code: CNMG 120408-TF, ISO Code: CNMG/CNGG-TF, 80 deg Included Angle, For Use On: Carbon Steel, Alloy Steel, Stainless Steel and High Temperature Alloys
Features
- Double sided 80 deg rhombic inserts, positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
Specifications
ApplicationISO Turning
ANSI CodeCNMG 120408-TF
Corner Radius0.8 mm
For Use OnCarbon Steel, Alloy Steel, Stainless Steel and High Temperature Alloys
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size120408
Insert StyleCNMG
ISO CodeCNMG/CNGG-TF
Manufacturers GradeIC9250
RakePositive
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Additional Information
Standards/ApprovalISO 13399
