Iscar ISCAR 5506973

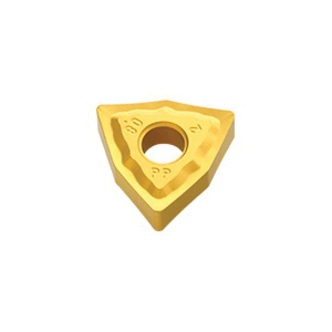

Iscar 5506973 ISOTURN Turning Insert, ANSI Code: WNMG 080408-PP, WNMG Insert, 80408 Insert, Trigon Shape, Positive Rake, Manufacturers Grade: IC9250
Invoice description:
Wnmg 432-pp Ic9250
Factory Order
Iscar Turning Insert, Series: ISOTURN, WNMG Insert, 80408 Insert, Trigon, 12.7 mm Inscribed Circle, 4.76 mm Thickness, Positive Rake, 0.8 mm Corner Radius, Manufacturers Grade: IC9250, ANSI Code: WNMG 080408-PP, ISO Code: WNMG-PP, 80 deg Included Angle
Features
- Double sided trigon inserts with a positive rake angle and sharp, positive radial edge
- Used for machining very ductile materials such as aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys
Specifications
ApplicationISO Turning
ANSI CodeWNMG 080408-PP
Corner Radius0.8 mm
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size80408
Insert StyleWNMG
ISO CodeWNMG-PP
Manufacturers GradeIC9250
RakePositive
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Additional Information
Standards/ApprovalISO 13399
