Iscar ISCAR 5506971

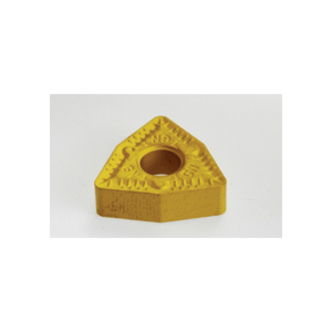

Iscar 5506971 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 432-GN IC9250, WNMG Insert, Material Grade: M, P, 432 Insert, Trigon Shape, 08 Seat, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC9250

UNSPSC: 23242107
Manufacturer PN: 5506971
$13.82 EA
Factory Order
Estimated to ship in 14 days
QTY:

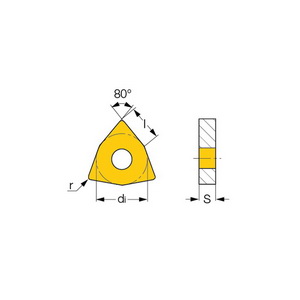

Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 432 Insert, Trigon, 4.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, GN Chipbreaker, 0.8 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: IC9250, ANSI Code: WNMG 432-GN IC9250, ISO Code: WNMG 080408-GN IC9250, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+alpha Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel

  • Features

  • Secure cutting edge
  • Chipbreaker on both sides, with hole

Specifications

ApplicationMedium and Semi-Roughing
ANSI CodeWNMG 432-GN IC9250
ChipbreakerGN
Corner Radius0.8 mm
FinishCVD-TiCN+alpha Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter0.203 in
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleWNMG
ISO CodeWNMG 080408-GN IC9250
Manufacturers GradeIC9250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut4.5 mm
Relief Angle0 deg
Seat Size08
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
