Iscar ISCAR 5506926

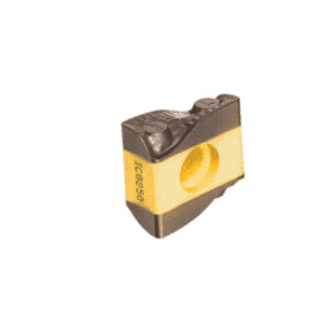

Iscar 5506926 HELITURN Tangential Turning Insert, ANSI Code: LNMX110408R-HT IC9250, LNMX Insert, Material Grade: M, P, 110408 Insert, Rectangle Shape, 11 Seat, Positive Rake, Right Hand Cutting, For Use On Stainless Steel and Steel, Carbide
Invoice description:
Lnmx 110408r-ht Ic9250
Factory Order

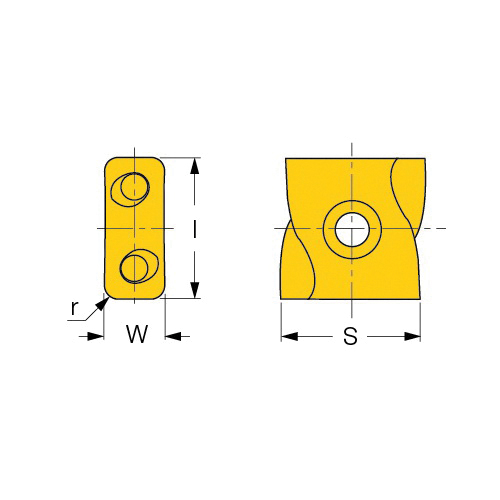

Iscar Turning Insert, Tangential, Series: HELITURN, LNMX Insert, 110408 Insert, Rectangle Shape, 11.4 mm Thickness, 4.75 mm Width, 11 mm Length, 11 Seat, Positive Rake, HT Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC9250, ANSI Code: LNMX110408R-HT IC9250, ISO Code: LNMX 110408R-HT IC9250, 90 deg Included Angle, 0 deg Relief Angle, Right Hand Cutting Direction, Carbide, CVD-TiCN+alpha Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- 4 cutting edges
- Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance
Specifications
ApplicationHigh Speed Machining Applications
ANSI CodeLNMX110408R-HT IC9250
ChipbreakerHT
Corner Radius0.8 mm
Cutting DirectionRight Hand
FinishCVD-TiCN+alpha Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Included Angle90 deg
Insert Size110408
Insert StyleLNMX
ISO CodeLNMX 110408R-HT IC9250
Length11 mm
Manufacturers GradeIC9250
MaterialCarbide
Material GradeM, P
RakePositive
Relief Angle0 deg
Seat Size11
SeriesHELITURN
ShapeRectangle
Thickness11.4 mm
TypeTangential
Width4.75 mm
Additional Information
Country of OriginIL
