Iscar ISCAR 5506915

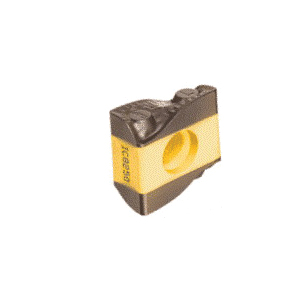

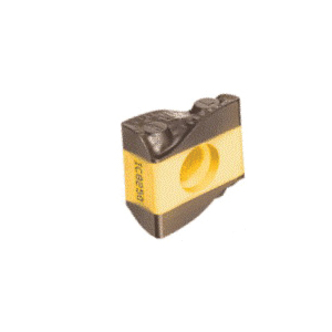

Iscar 5506915 HELITURN Tangential Turning Insert, ANSI Code: LNMX 221016L-HT IC9150, LNMX Insert, Material Grade: K, P, 221016 Insert, Rectangle Shape, 22 Seat, Positive Rake, Left Hand Cutting, For Use On Cast Iron and Steel, Carbide
Factory Order

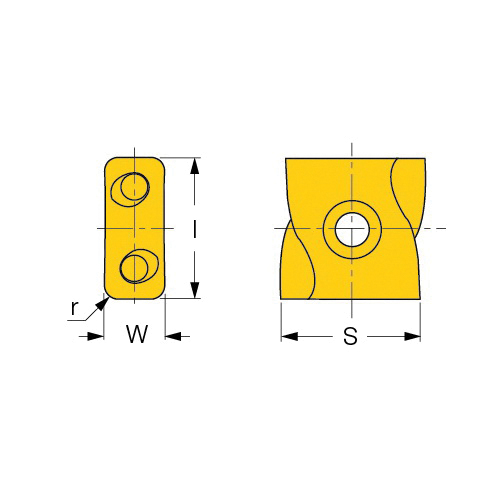

Iscar Turning Insert, Tangential, Series: HELITURN, LNMX Insert, 221016 Insert, Rectangle Shape, 15 mm Maximum Depth of Cut, 20 mm Thickness, 9.4 mm Width, 22 mm Length, 22 Seat, Positive Rake, HT Chipbreaker, 1.6 mm Corner Radius, Manufacturers Grade: IC9150, ANSI Code: LNMX 221016L-HT IC9150, ISO Code: LNMX 221016L-HT IC9150, 90 deg Included Angle, 0 deg Relief Angle, Left Hand Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- 4 cutting edges
Specifications
ApplicationHigh Speed Machining Applications
ANSI CodeLNMX 221016L-HT IC9150
ChipbreakerHT
Corner Radius1.6 mm
Cutting DirectionLeft Hand
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Included Angle90 deg
Insert Size221016
Insert StyleLNMX
ISO CodeLNMX 221016L-HT IC9150
Length22 mm
Manufacturers GradeIC9150
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut15 mm
RakePositive
Relief Angle0 deg
Seat Size22
SeriesHELITURN
ShapeRectangle
Thickness20 mm
TypeTangential
Width9.4 mm
