Iscar ISCAR 5506483

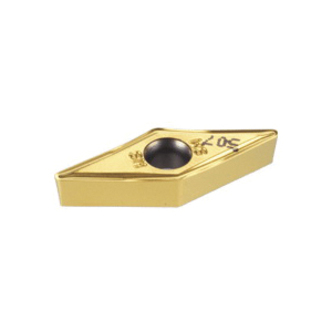

Iscar 5506483 ISOTURN Turning Insert, ANSI Code: VCMT 222-SM IC908, VCMT Insert, Material Grade: H, K, M, P, S, 222 Insert, Rhombic Shape, 11 Seat, Positive Rake, For Use On Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Invoice description:
Vcmt 222-sm Ic908
Factory Order

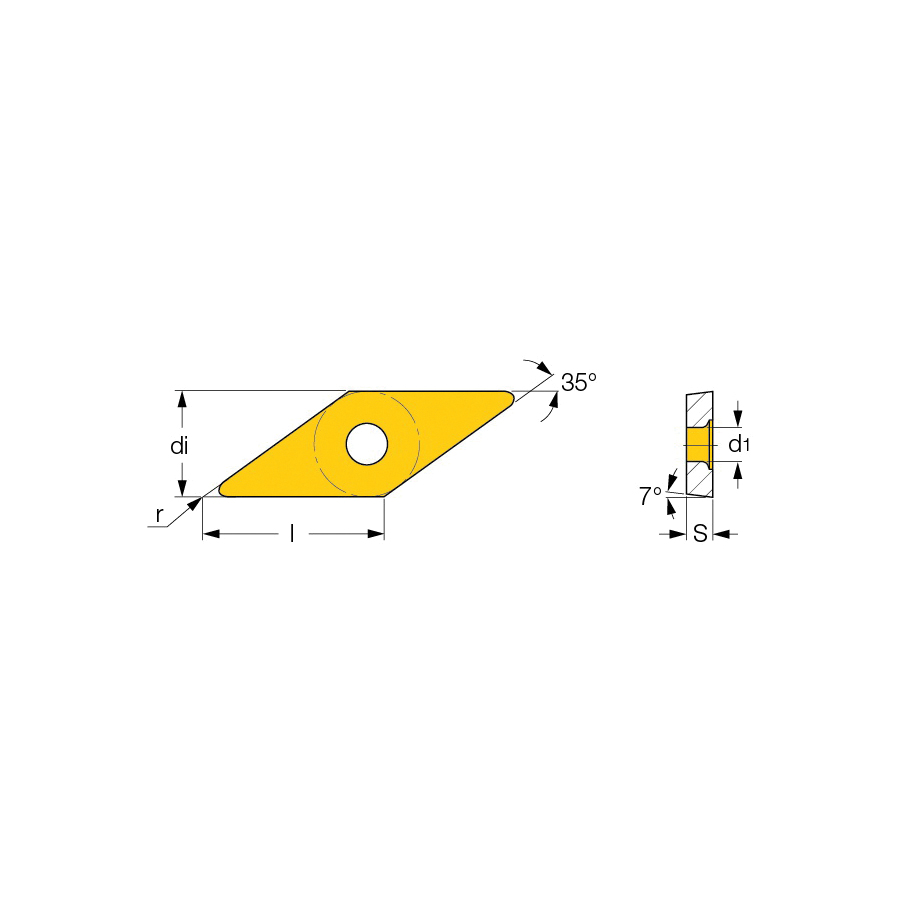

Iscar Turning Insert, Series: ISOTURN, VCMT Insert, 222 Insert, Rhombic, 2 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 3.18 mm Thickness, 11 Seat, Positive Rake, SM Chipbreaker, 0.8 mm Corner Radius, 2.9 mm Hole Dia, Manufacturers Grade: IC908, ANSI Code: VCMT 222-SM IC908, ISO Code: VCMT 110308-SM IC908, 35 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Used for a wide range of materials including soft and exotic alloys
- IC908 grade provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
- Chipbreaker on one side, with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeVCMT 222-SM IC908
ChipbreakerSM
Corner Radius0.8 mm
FinishPVD-TiAlN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Hole Diameter2.9 mm
Included Angle35 deg
Inscribed Circle6.35 mm
Insert Size222
Insert StyleVCMT
ISO CodeVCMT 110308-SM IC908
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut2 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness3.18 mm
