Iscar ISCAR 5506344
Iscar 5506344 HELITURN Tangential Turning Insert, ANSI Code: LNMX 110408R-HT IC908, LNMX Insert, Material Grade: H, K, M, P, S, 110408 Insert, Rectangle Shape, 11 Seat, Positive Rake, Right Hand Cutting, Carbide, Manufacturers Grade: IC908
Invoice description:
Lnmx 110408r-ht Ic908
Factory Order

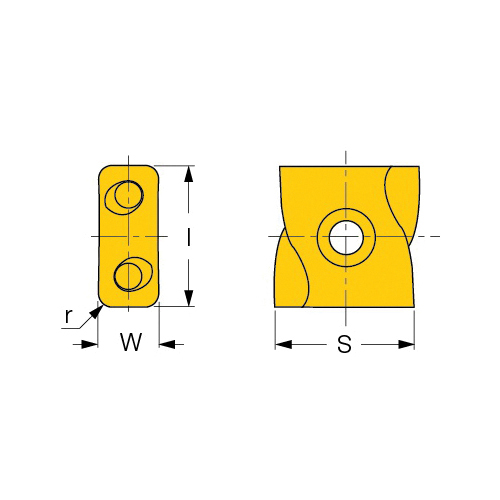

Iscar Turning Insert, Tangential, Series: HELITURN, LNMX Insert, 110408 Insert, Rectangle Shape, 11.4 mm Thickness, 4.75 mm Width, 11 mm Length, 11 Seat, Positive Rake, HT Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC908, ANSI Code: LNMX 110408R-HT IC908, ISO Code: LNMX 110408R-HT IC908, 90 deg Included Angle, 0 deg Relief Angle, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- 4 cutting edges
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationHigh Speed Machining Applications
ANSI CodeLNMX 110408R-HT IC908
ChipbreakerHT
Corner Radius0.8 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Included Angle90 deg
Insert Size110408
Insert StyleLNMX
ISO CodeLNMX 110408R-HT IC908
Length11 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
RakePositive
Relief Angle0 deg
Seat Size11
SeriesHELITURN
ShapeRectangle
Thickness11.4 mm
TypeTangential
Width4.75 mm
Additional Information
Country of OriginIL
