Iscar ISCAR 5506327

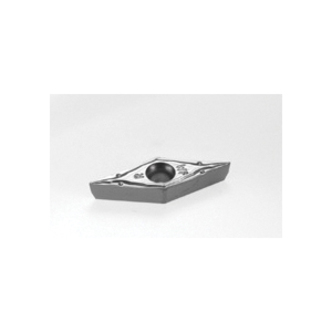

Iscar 5506327 ISOTURN 1-Sided Turning Insert, ANSI Code: VCET 22.002 WF IC907, VCET Insert, Material Grade: H, K, M, N, P, S, 22.002 Insert, Rhombic Shape, 11 Seat, Right Hand Cutting, Carbide, Manufacturers Grade: IC907
Invoice description:
Vcet 22.002r-wf Ic907
Factory Order

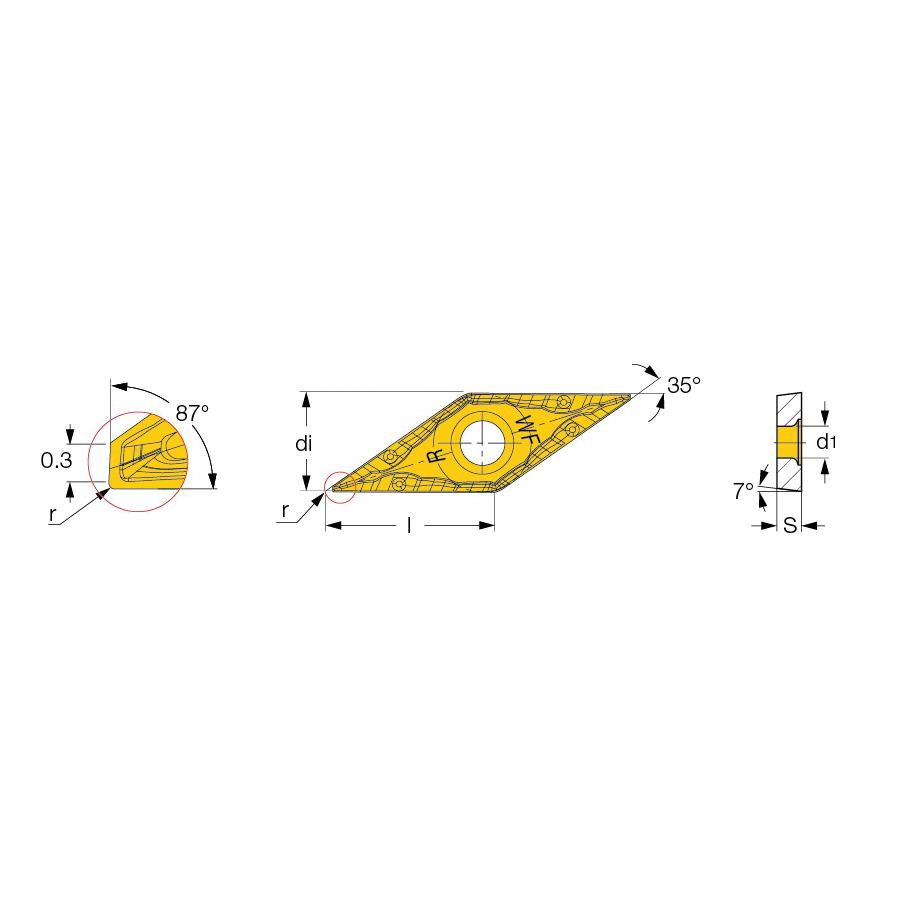

Iscar Turning Insert, 1-Sided, Series: ISOTURN, VCET Insert, 22.002 Insert, Rhombic, 4 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 3.18 mm Thickness, 11 Seat, WF Chipbreaker, 0.05 mm Corner Radius, 2.9 mm Hole Dia, Manufacturers Grade: IC907, ANSI Code: VCET 22.002 WF IC907, ISO Code: VCET 1103005R-WF IC907, 35 deg Included Angle, 7 deg Relief Angle, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Three to five times better surface finish compared to standard turning inserts at the same feeds
- IC907 grade a tough sub-micron substrate, TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ApplicationFinishing Applications
ANSI CodeVCET 22.002 WF IC907
ChipbreakerWF
Corner Radius0.05 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter2.9 mm
Included Angle35 deg
Inscribed Circle6.35 mm
Insert Size22.002
Insert StyleVCET
ISO CodeVCET 1103005R-WF IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut4 mm
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness3.18 mm
Type1-Sided
Additional Information
Country of OriginIL
