Iscar ISCAR 5506326

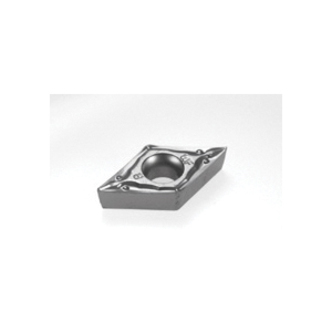

Iscar 5506326 1-Sided Turning Insert, ANSI Code: DCET 3.002R WF IC907, DCET Insert, Material Grade: H, K, M, N, P, S, 3.002 Insert, Rhombic Shape, 11 Seat, Right Hand Cutting, Carbide, Manufacturers Grade: IC907
Invoice description:
Dcet 3-.002r-wf Ic907
Factory Order

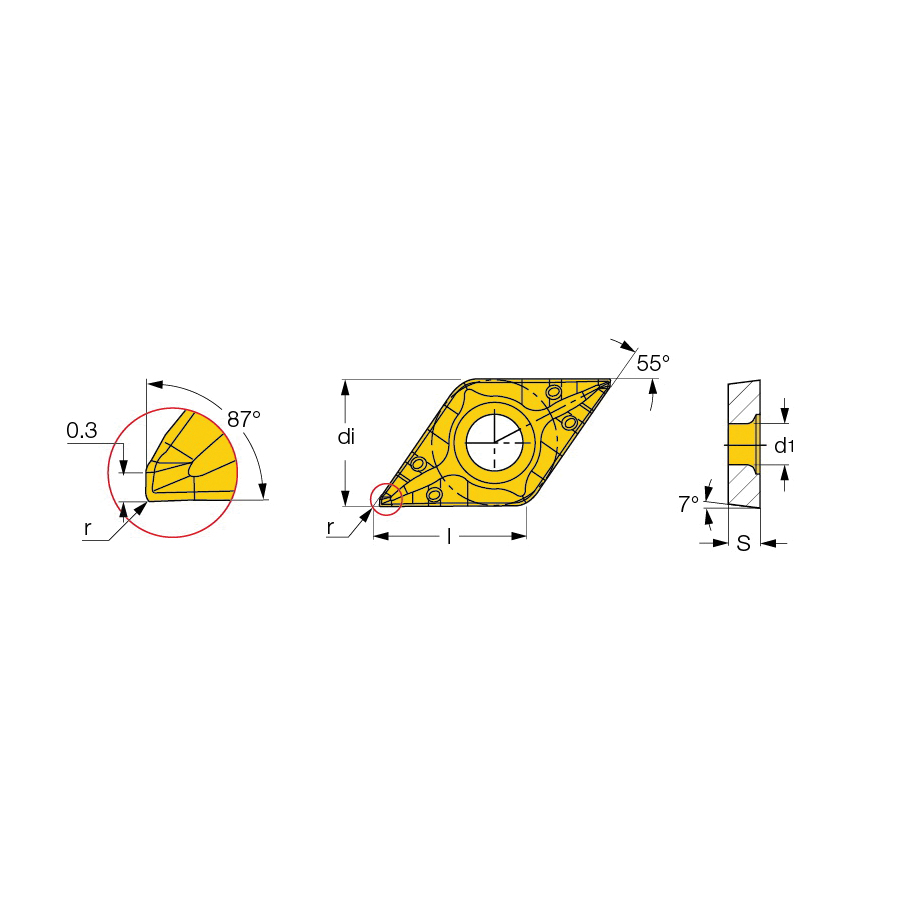

Iscar Turning Insert, 1-Sided, DCET Insert, 3.002 Insert, Rhombic, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, WF Chipbreaker, 0.05 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC907, ANSI Code: DCET 3.002R WF IC907, ISO Code: DCET 11T3005R-WF IC907, 55 deg Included Angle, 7 deg Relief Angle, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Three to five times better surface finish compared to standard turning inserts at the same feeds
- IC907 grade a tough sub-micron substrate, TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ApplicationFinishing Applications
ANSI CodeDCET 3.002R WF IC907
ChipbreakerWF
Corner Radius0.05 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter4.4 mm
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size3.002
Insert StyleDCET
ISO CodeDCET 11T3005R-WF IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut3 mm
Relief Angle7 deg
Seat Size11
ShapeRhombic
Thickness3.97 mm
Type1-Sided
Additional Information
Country of OriginIL
