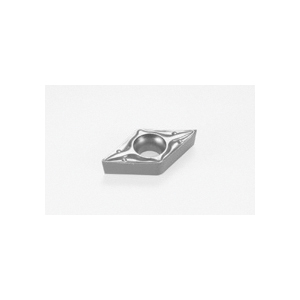

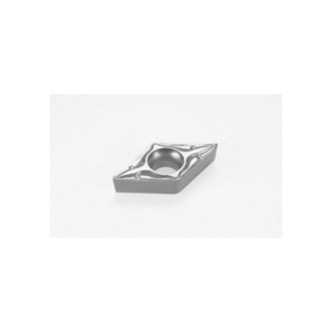

Iscar ISCAR 5506325
Iscar 5506325 ISOTURN Turning Insert, ANSI Code: DCET 2-.002R-WF IC907, DCET Insert, Material Grade: H, K, M, N, P, S, 2-.002 Insert, Rhombic Shape, 07 Seat, Right Hand Cutting, Carbide, Manufacturers Grade: IC907
Invoice description:
Dcet 2-.002r-wf Ic907
Factory Order

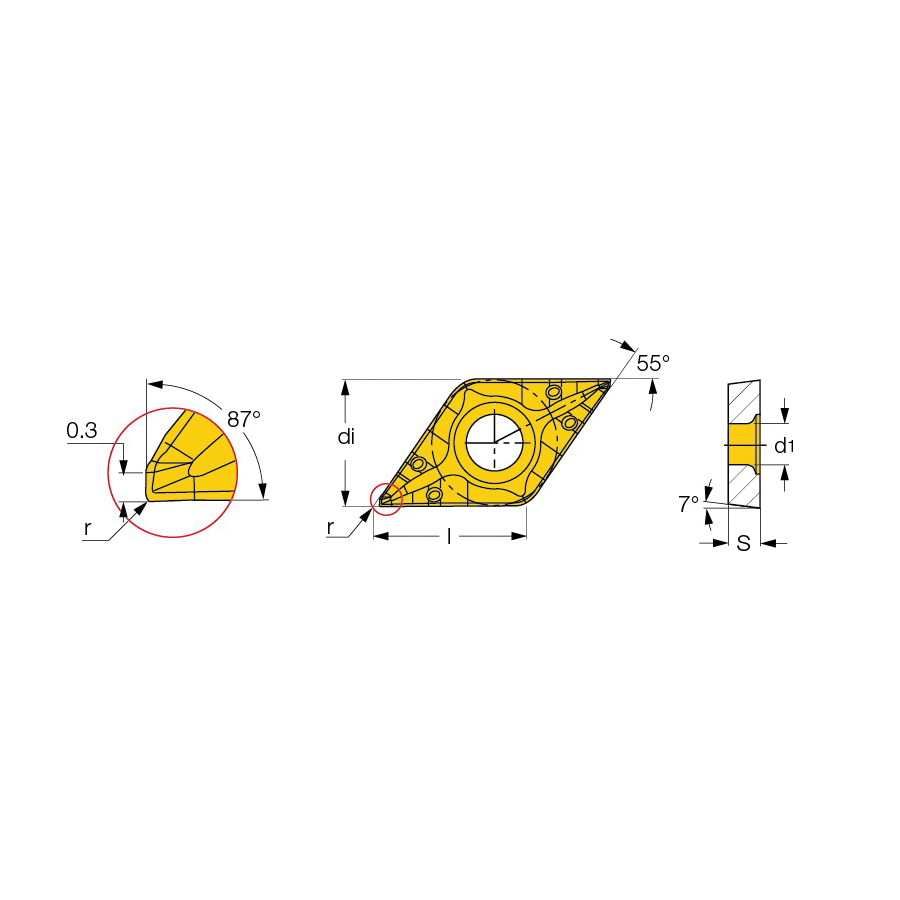

Iscar Turning Insert, Series: ISOTURN, DCET Insert, 2-.002 Insert, Rhombic, 3 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 07 Seat, WF Chipbreaker, 0.05 mm Corner Radius, 2.8 mm Hole Dia, Manufacturers Grade: IC907, ANSI Code: DCET 2-.002R-WF IC907, ISO Code: DCET 0702005R-WF IC907, 55 deg Included Angle, 7 deg Relief Angle, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Three to five times better surface finish compared to standard turning inserts at the same feeds
- Suitable for low-to-medium cutting speeds
- Chipbreaker on one side with hole and countersink
Specifications
ApplicationFinishing Operations at High Feeds
ANSI CodeDCET 2-.002R-WF IC907
ChipbreakerWF
Corner Radius0.05 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter2.8 mm
Included Angle55 deg
Inscribed Circle6.35 mm
Insert Size2-.002
Insert StyleDCET
ISO CodeDCET 0702005R-WF IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut3 mm
Relief Angle7 deg
Seat Size07
SeriesISOTURN
ShapeRhombic
Thickness2.38 mm
Additional Information
Country of OriginIL
