Iscar ISCAR 5506235

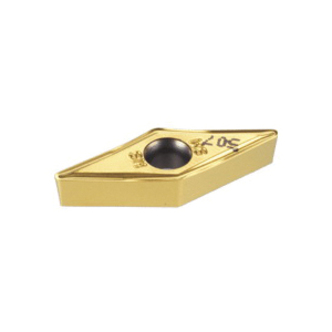

Iscar 5506235 ISOTURN 1-Sided Turning Insert, ANSI Code: VCMT 330-SM IC907, VCMT Insert, Material Grade: H, K, M, N, P, S, 330 Insert, Rhombic Shape, 16 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Vcmt 330-sm Ic907 Turning Insert
Pack Size: 10
UNSPSC:
23242107
Manufacturer PN: 5506235
$20.24 EA
Factory OrderEstimated to ship in 7 days
Iscar Turning Insert, 1-Sided, Series: ISOTURN, VCMT Insert, 330 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Positive Rake, SM Chipbreaker, 0.2 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC907, ANSI Code: VCMT 330-SM IC907, ISO Code: VCMT 160402-SM IC907, 35 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive flank
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Chipbreaker on one side with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeVCMT 330-SM IC907
ChipbreakerSM
Corner Radius0.2 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter4.4 mm
Included Angle35 deg
Inscribed Circle9.52 mm
Insert Size330
Insert StyleVCMT
ISO CodeVCMT 160402-SM IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle7 deg
Seat Size16
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type1-Sided
Additional Information
Country of OriginIL
