Iscar ISCAR 5506193

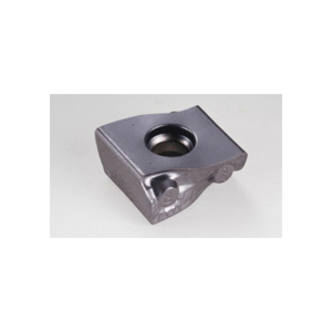

Iscar 5506193 HELITURN Tangential Turning Insert, ANSI Code: LNMX 150608R-HT IC908, LNMX Insert, Material Grade: H, K, M, P, S, 150608 Insert, Rectangle Shape, 15 Seat, Positive Rake, Right Hand Cutting, Carbide, Manufacturers Grade: IC908
Invoice description:
Lnmx 150608r-ht Ic908
Factory Order
Iscar Turning Insert, Tangential, Series: HELITURN, LNMX Insert, 150608 Insert, Rectangle Shape, 6 mm Maximum Depth of Cut, 13.4 mm Thickness, 6.4 mm Width, 15 mm Length, 15 Seat, Positive Rake, HT Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC908, ANSI Code: LNMX 150608R-HT IC908, ISO Code: LNMX 150608R-HT IC908, 90 deg Included Angle, 0 deg Relief Angle, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Specifications
ApplicationHigh Speed Machining Applications
ANSI CodeLNMX 150608R-HT IC908
ChipbreakerHT
Corner Radius0.8 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Included Angle90 deg
Insert Size150608
Insert StyleLNMX
ISO CodeLNMX 150608R-HT IC908
Length15 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut6 mm
RakePositive
Relief Angle0 deg
Seat Size15
SeriesHELITURN
ShapeRectangle
Thickness13.4 mm
TypeTangential
Width6.4 mm
Additional Information
Country of OriginIL
