Iscar ISCAR 5506072

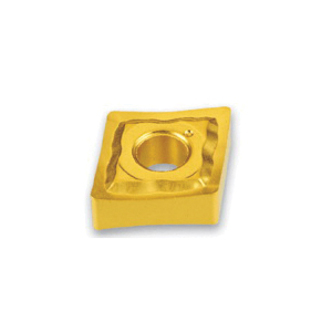

Iscar 5506072 2-Sided Turning Insert, ANSI Code: CNMG 643-PP IC907, CNMG Insert, Material Grade: H, K, M, N, P, S, 643 Insert, Rhombic Shape, 19 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Cnmg 643-pp Ic907
Factory Order

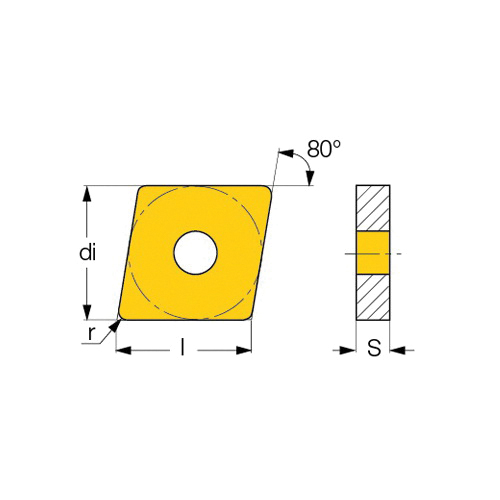

Iscar Turning Insert, 2-Sided, CNMG Insert, 643 Insert, Rhombic, 8 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19 Seat, Positive Rake, PP Chipbreaker, 1.2 mm Corner Radius, 0.313 in Hole Dia, Manufacturers Grade: IC907, ANSI Code: CNMG 643-PP IC907, ISO Code: CNMG 190612-PP IC907, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive rake angle and sharp, positive radial edge
- IC907 grade a tough sub-micron substrate, TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ApplicationMachining Applications
ANSI CodeCNMG 643-PP IC907
ChipbreakerPP
Corner Radius1.2 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter0.313 in
Included Angle80 deg
Inscribed Circle19.05 mm
Insert Size643
Insert StyleCNMG
ISO CodeCNMG 190612-PP IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut8 mm
RakePositive
Relief Angle0 deg
Seat Size19
ShapeRhombic
Thickness6.35 mm
Type2-Sided
Additional Information
Country of OriginIL
