Iscar ISCAR 5505906

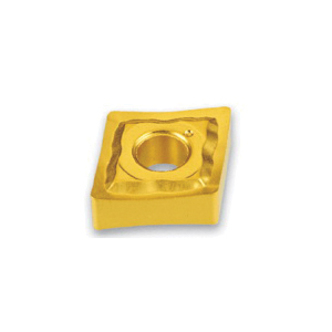

Iscar 5505906 ISOTURN 2-Sided Turning Insert, ANSI Code: CNGG 643-PP IC907, CNGG Insert, Material Grade: H, K, M, N, P, S, 643 Insert, Rhombic Shape, 19 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Cngg 643-pp Ic907
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNGG Insert, 643 Insert, Rhombic, 9 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19 Seat, Positive Rake, PP Chipbreaker, 1.2 mm Corner Radius, Manufacturers Grade: IC907, ANSI Code: CNGG 643-PP IC907, ISO Code: CNGG 190612-PP IC907, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive rake angle and sharp, positive radial edge
- IC907 grade a tough sub-micron substrate, TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ApplicationMachining Applications
ANSI CodeCNGG 643-PP IC907
ChipbreakerPP
Corner Radius1.2 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Included Angle80 deg
Inscribed Circle19.05 mm
Insert Size643
Insert StyleCNGG
ISO CodeCNGG 190612-PP IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut9 mm
RakePositive
Relief Angle0 deg
Seat Size19
SeriesISOTURN
ShapeRhombic
Thickness6.35 mm
Type2-Sided
Additional Information
Country of OriginIL
