Iscar ISCAR 5505850

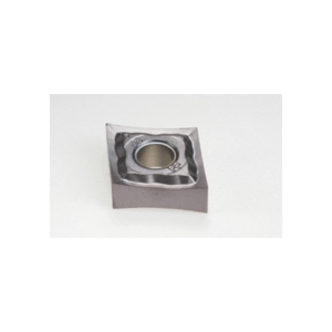

Iscar 5505850 ISOTURN 2-Sided Turning Insert, ANSI Code: CNGG 430.5-PP IC907, CNGG Insert, Material Grade: H, K, M, N, P, S, 430.5 Insert, Rhombic Shape, 12 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Cngg 430.5-pp Ic907
Factory Order

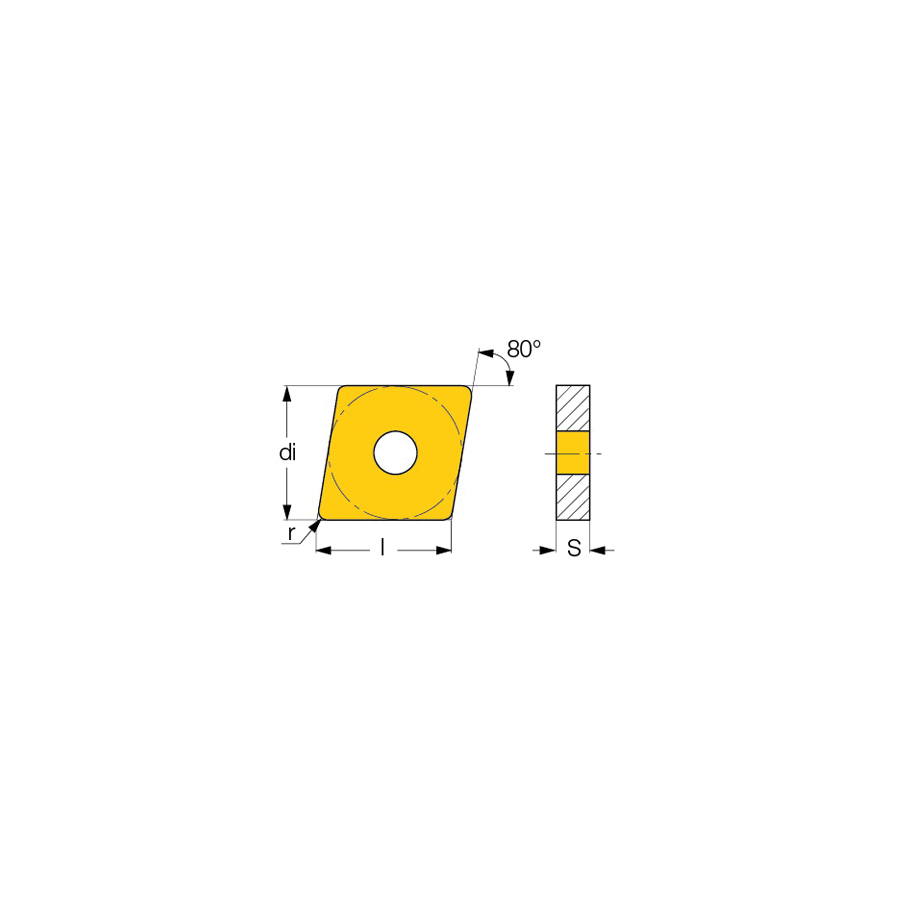

Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNGG Insert, 430.5 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, PP Chipbreaker, 0.2 mm Corner Radius, 5.1562 mm Hole Dia, Manufacturers Grade: IC907, ANSI Code: CNGG 430.5-PP IC907, ISO Code: CNGG 120402-PP IC907, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive rake angle and sharp, positive radial edge
- Used for machining very ductile materials such as aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys
- IC907 grade developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
- Suitable for low-to-medium cutting speeds
- Chipbreaker on both sides, with hole
Specifications
ANSI CodeCNGG 430.5-PP IC907
ChipbreakerPP
Corner Radius0.2 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter5.1562 mm
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size430.5
Insert StyleCNGG
ISO CodeCNGG 120402-PP IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
