Iscar ISCAR 5505578

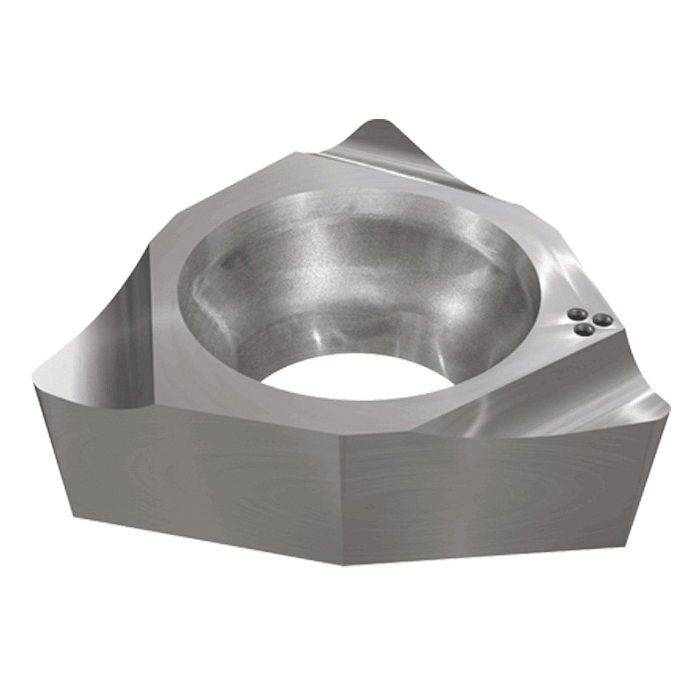

Iscar 5505578 ISOTURN Turning Insert, ANSI Code: WCGT 020104L, WCGT Insert, 20104 Insert, Trigon Shape, Positive Rake, Manufacturers Grade: IC908

Invoice description: Wcgt 020104l Ic908 Turning Insert

Pack Size: 10
UNSPSC: 23242105
Manufacturer PN: 5505578
$21.88 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Turning Insert, Series: ISOTURN, WCGT Insert, 20104 Insert, Trigon, 3.97 mm Inscribed Circle, 1.59 mm Thickness, Positive Rake, 0.4 mm Corner Radius, Manufacturers Grade: IC908, ANSI Code: WCGT 020104L, ISO Code: WCGT, 80 deg Included Angle, 7 deg Relief Angle

  • Features

  • Used for finishing on miniature boring bars, provide excellent surface finish
  • Suitable for a wide range of materials

Specifications

ApplicationISO Turning
ANSI CodeWCGT 020104L
Corner Radius0.4 mm
Included Angle80 deg
Inscribed Circle3.97 mm
Insert Size20104
Insert StyleWCGT
ISO CodeWCGT
Manufacturers GradeIC908
RakePositive
Relief Angle7 deg
SeriesISOTURN
ShapeTrigon
Thickness1.59 mm

Additional Information

Standards/ApprovalISO 13399
