Iscar ISCAR 5505571

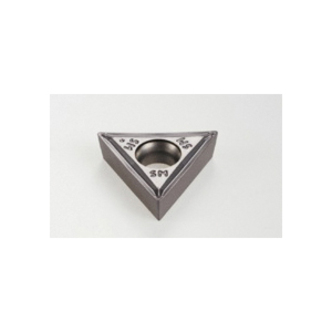

Iscar 5505571 1-Sided Turning Insert, TCMT Insert, Material Grade: H, K, M, N, P, S, 16T304 Insert, Triangular Shape, 16 Seat, Positive Rake, For Use On Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum, Carbide
Invoice description:
Tcmt 3-1-sm Ic907
Factory Order

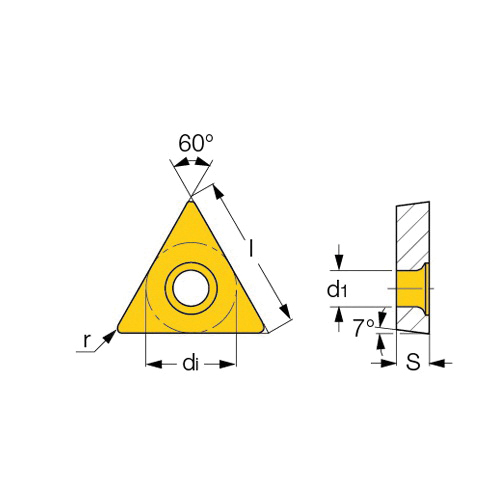

Iscar Turning Insert, 1-Sided, TCMT Insert, 16T304 Insert, Triangular, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 16 Seat, Positive Rake, SM Chipbreaker, 0.4 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC907, ISO Code: TCMT 16T304-SM IC908, 60 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive flank
- Positive rake, low cutting forces
- Chipbreaker on one side with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ChipbreakerSM
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter4.4 mm
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16T304
Insert StyleTCMT
ISO CodeTCMT 16T304-SM IC908
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut3 mm
RakePositive
Relief Angle7 deg
Seat Size16
ShapeTriangular
Thickness3.97 mm
Type1-Sided
Additional Information
Country of OriginIL
