Iscar ISCAR 5505523

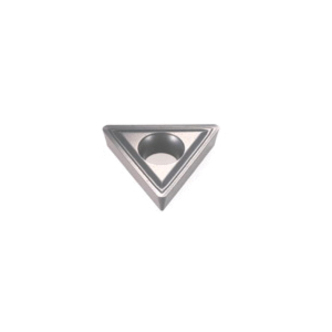

Iscar 5505523 ISOTURN Turning Insert, ANSI Code: TPMT 322, TPMT Insert, 322 Insert, Triangular Shape, Positive Rake, Manufacturers Grade: IC907
Invoice description:
Tpmt 322 Ic907
Factory Order
Iscar Turning Insert, Series: ISOTURN, TPMT Insert, 322 Insert, Triangular, 3/8 in Inscribed Circle, 1/8 in Thickness, Positive Rake, 0.031 in Corner Radius, Manufacturers Grade: IC907, ANSI Code: TPMT 322, ISO Code: TPMT, 60 deg Included Angle, 11 deg Relief Angle
Features
- Positive chipformer, low cutting forces
- Used for internal turning and for finishing
Specifications
ApplicationISO Turning and Internal 60 deg Diamond 91 deg Approach
ANSI CodeTPMT 322
Corner Radius0.031 in
Included Angle60 deg
Inscribed Circle3/8 in
Insert Size322
Insert StyleTPMT
ISO CodeTPMT
Manufacturers GradeIC907
RakePositive
Relief Angle11 deg
SeriesISOTURN
ShapeTriangular
Thickness1/8 in
Additional Information
Standards/ApprovalISO 13399
