Iscar ISCAR 5505520

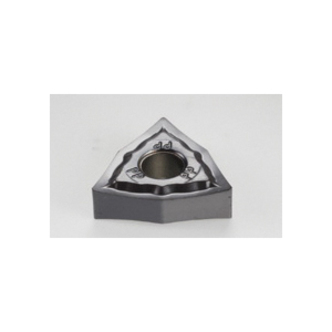

Iscar 5505520 2-Sided Turning Insert, ANSI Code: WNMG 431 PP IC907, WNMG Insert, Material Grade: H, K, M, N, P, S, 431 Insert, Trigon Shape, 08 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Wnmg 431-pp Ic907
Factory Order

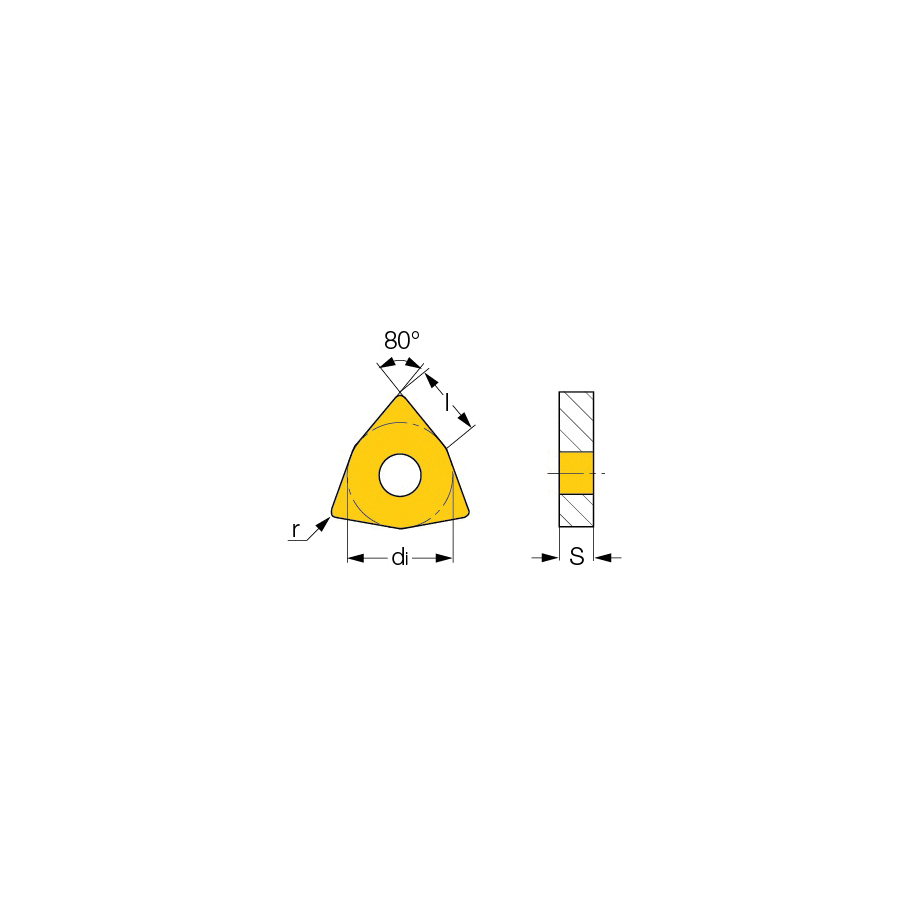

Iscar Turning Insert, 2-Sided, WNMG Insert, 431 Insert, Trigon, 3.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, Positive Rake, PP Chipbreaker, 0.4 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: IC907, ANSI Code: WNMG 431 PP IC907, ISO Code: WNMG 080404-PP IC907, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive rake angle and sharp, positive radial edge
- IC907 grade a tough sub-micron substrate, TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ANSI CodeWNMG 431 PP IC907
ChipbreakerPP
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter0.203 in
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size431
Insert StyleWNMG
ISO CodeWNMG 080404-PP IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle0 deg
Seat Size08
ShapeTrigon
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
