Iscar ISCAR 5505462
Iscar 5505462 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 431FT IC907, DNGG Insert, Material Grade: H, K, M, N, P, S, 431 Insert, Rhombic Shape, 15 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Dngg 431-tf Ic907
Pack Size: 10
UNSPSC:
23242107
Manufacturer PN: 5505462
$25.37 EA
Factory OrderEstimated to ship in 14 days

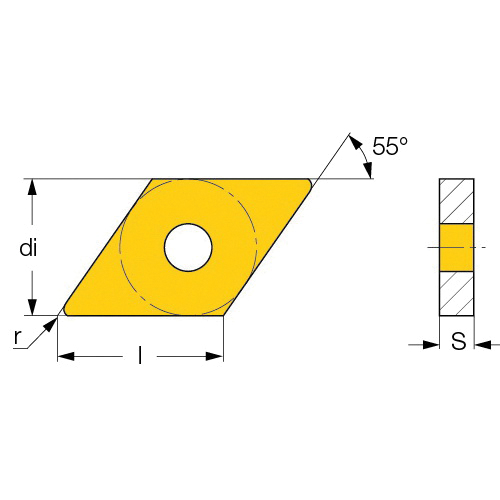

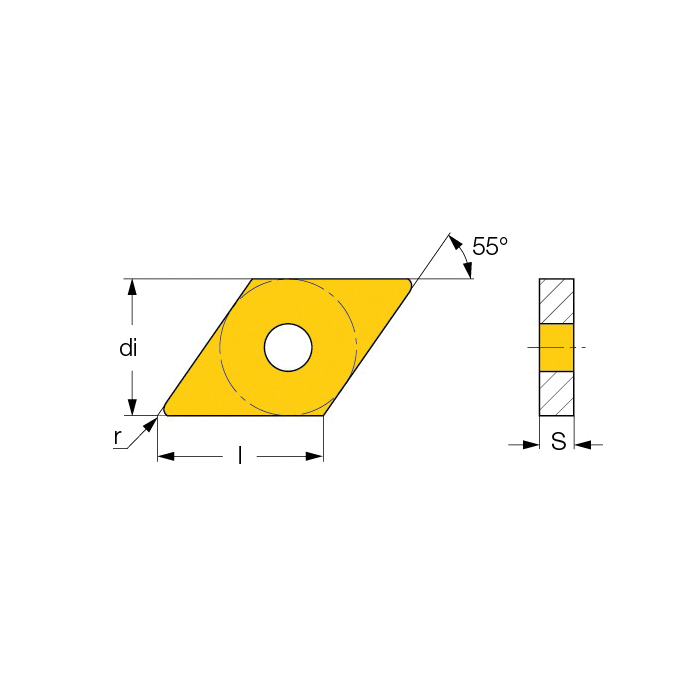

Iscar Turning Insert, 2-Sided, Series: ISOTURN, DNGG Insert, 431 Insert, Rhombic, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, Positive Rake, TF Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC907, ANSI Code: WNMG 431FT IC907, ISO Code: DNGG 150404-TF IC907, 55 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- IC907 grade a tough sub-micron substrate, TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ANSI CodeWNMG 431FT IC907
ChipbreakerTF
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size431
Insert StyleDNGG
ISO CodeDNGG 150404-TF IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
RakePositive
Relief Angle0 deg
Seat Size15
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
