Iscar ISCAR 5505461

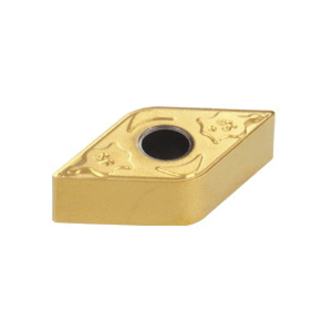

Iscar 5505461 2-Sided Turning Insert, ANSI Code: DNGG 430.5-SF IC907, DNGG Insert, Material Grade: H, K, M, N, P, S, 430.5 Insert, Rhombic Shape, 15 Seat, For Use On Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Invoice description:
Dngg 430.5-sf Ic907
Factory Order
Iscar Turning Insert, 2-Sided, DNGG Insert, 430.5 Insert, Rhombic, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, SF Chipbreaker, 0.2 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: IC907, ANSI Code: DNGG 430.5-SF IC907, ISO Code: DNGG 150402-SF IC907, 55 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Controls chip flow at very low feed and depth of cut
- Excellent crater wear resistance
- IC907 grade a tough sub-micron substrate, TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ApplicationSuper Finishing Applications
ANSI CodeDNGG 430.5-SF IC907
ChipbreakerSF
Corner Radius0.2 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter0.203 in
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size430.5
Insert StyleDNGG
ISO CodeDNGG 150402-SF IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle0 deg
Seat Size15
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
