Iscar ISCAR 5505423

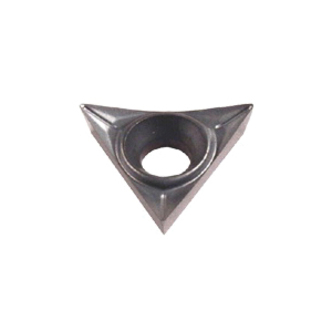

Iscar 5505423 ISOTURN 1-Sided Turning Insert, ANSI Code: TPGT 2-0-SP IC908, TPGT Insert, Material Grade: H, K, M, P, S, 2-0 Insert, Triangular Shape, 11 Seat, For Use On Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys, Carbide
Invoice description:
Tpgt 2-0-sp Ic908
Factory Order
Iscar Turning Insert, 1-Sided, Series: ISOTURN, TPGT Insert, 2-0 Insert, Triangular, 1 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 11 Seat, SP Chipbreaker, 0.2 mm Corner Radius, 3 mm Hole Dia, Manufacturers Grade: IC908, ANSI Code: TPGT 2-0-SP IC908, ISO Code: TPGT 110202-SP IC908, 60 deg Included Angle, 11 deg Relief Angle, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- IC908 grade a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions

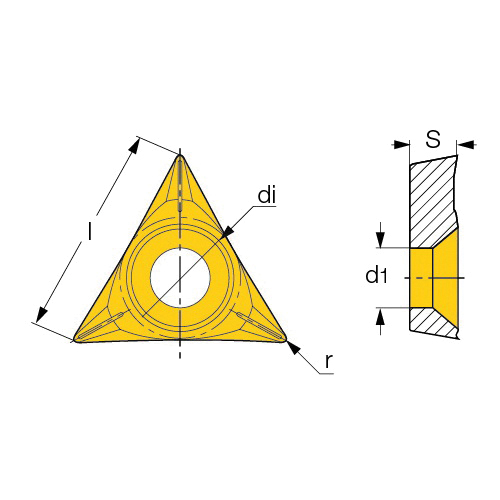

Specifications
ApplicationFine Boring and Finish Turning
ANSI CodeTPGT 2-0-SP IC908
ChipbreakerSP
Corner Radius0.2 mm
FinishPVD-TiAlN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Hole Diameter3 mm
Included Angle60 deg
Inscribed Circle6.35 mm
Insert Size2-0
Insert StyleTPGT
ISO CodeTPGT 110202-SP IC908
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut1 mm
Relief Angle11 deg
Seat Size11
SeriesISOTURN
ShapeTriangular
Thickness2.38 mm
Type1-Sided
Additional Information
Country of OriginIL
