Iscar ISCAR 5505376

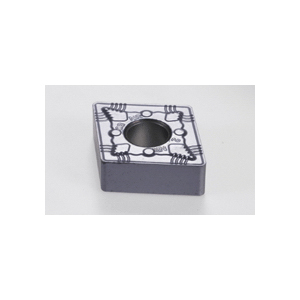

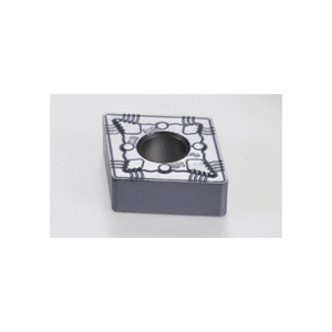

Iscar 5505376 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 432-NR IC907, CNMG Insert, Material Grade: H, K, M, N, P, S, 432 Insert, Rhombic Shape, 12 Seat, Carbide, Manufacturers Grade: IC907
Invoice description:
Cnmg 432-nr Ic907
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 432 Insert, Rhombic, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, NR Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC907, ANSI Code: CNMG 432-NR IC907, ISO Code: CNMG 120408-NR IC907, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Double-sided 80 deg rhombic inserts with a special chipformer for heavy machining
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
- Chipbreaker on both sides with hole
Specifications
ANSI CodeCNMG 432-NR IC907
ChipbreakerNR
Corner Radius0.8 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleCNMG
ISO CodeCNMG 120408-NR IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut5 mm
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
