Iscar ISCAR 5505288

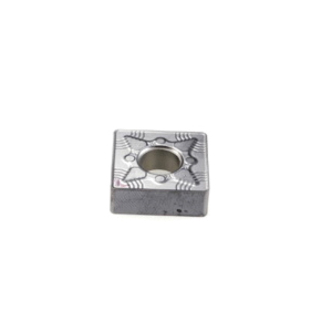

Iscar 5505288 ISOTURN 2-Sided Turning Insert, ANSI Code: SNMG 643-NR IC907, SNMG Insert, Material Grade: H, K, M, N, P, S, 643 Insert, Squared Shape, 19 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Snmg 643-nr Ic907
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, SNMG Insert, 643 Insert, Squared, 8 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19.05 mm Width, 19.05 mm Length, 19 Seat, Positive Rake, NR Chipbreaker, 1.2 mm Corner Radius, 7.9502 mm Hole Dia, Manufacturers Grade: IC907, ANSI Code: SNMG 643-NR IC907, ISO Code: SNMG 190612-NR IC907, 90 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Strong cutting edge, positive chipformer and free chip flow
- Chipbreaker on both sides, with hole
Specifications
ApplicationSemi-Roughing and Roughing
ANSI CodeSNMG 643-NR IC907
ChipbreakerNR
Corner Radius1.2 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter7.9502 mm
Included Angle90 deg
Inscribed Circle19.05 mm
Insert Size643
Insert StyleSNMG
ISO CodeSNMG 190612-NR IC907
Length19.05 mm
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut8 mm
RakePositive
Relief Angle0 deg
Seat Size19
SeriesISOTURN
ShapeSquared
Thickness6.35 mm
Type2-Sided
Width19.05 mm
Additional Information
Country of OriginIL
