Iscar ISCAR 5505277

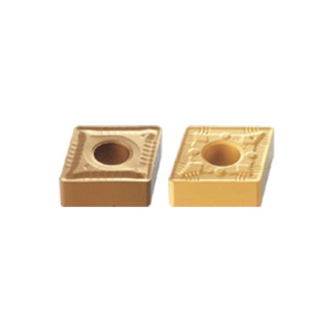

Iscar 5505277 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 432-WG IC520N, CNMG Insert, Material Grade: M, P, 432 Insert, Rhombic Shape, 12 Seat, For Use On Stainless Steel and Steel, Cermet, Manufacturers Grade: IC520N
Invoice description:
Cnmg 432-wg Ic520n
Factory Order

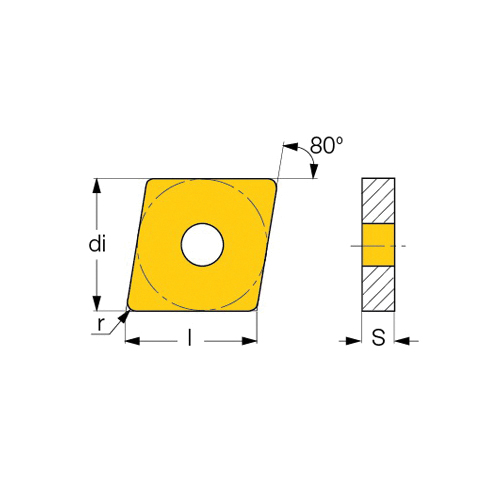

Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 432 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, WG Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC520N, ANSI Code: CNMG 432-WG IC520N, ISO Code: CNMG 120408-WG IC520N, 80 deg Included Angle, 0 deg Relief Angle, Cermet, PVD-TiCN+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Three to five times better surface finish compared to standard turning inserts at the same feeds
- IC520N grade a cermet grade, TiCN and TiN PVD coated
- Used for high speed semi-finishing and finishing applications with excellent surface finish
- Wear resistant, prevents built-up edge
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeCNMG 432-WG IC520N
ChipbreakerWG
Corner Radius0.8 mm
FinishPVD-TiCN+TiN Coated
For Use OnStainless Steel and Steel
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleCNMG
ISO CodeCNMG 120408-WG IC520N
Manufacturers GradeIC520N
MaterialCermet
Material GradeM, P
Maximum Depth of Cut3.5 mm
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
