Iscar ISCAR 5505156

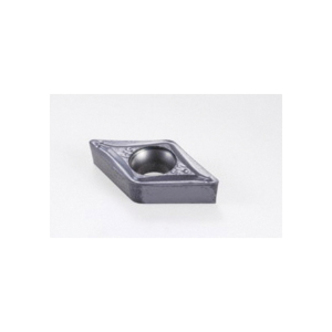

Iscar 5505156 ISOTURN 1-Sided Turning Insert, ANSI Code: DCMT 2-1-SM IC907, DCMT Insert, Material Grade: H, K, M, N, P, S, 2-1 Insert, Rhombic Shape, 07 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Dcmt 2-1-sm Ic907
Factory Order
Iscar Turning Insert, 1-Sided, Series: ISOTURN, DCMT Insert, 2-1 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 07 Seat, Positive Rake, SM Chipbreaker, 0.4 mm Corner Radius, 2.8 mm Hole Dia, Manufacturers Grade: IC907, ANSI Code: DCMT 2-1-SM IC907, ISO Code: DCMT 070204-SM IC907, 55 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive flank
- Chip breaking in moderate feed range
- Chipbreaker on one side with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeDCMT 2-1-SM IC907
ChipbreakerSM
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter2.8 mm
Included Angle55 deg
Inscribed Circle6.35 mm
Insert Size2-1
Insert StyleDCMT
ISO CodeDCMT 070204-SM IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle7 deg
Seat Size07
SeriesISOTURN
ShapeRhombic
Thickness2.38 mm
Type1-Sided
Additional Information
Country of OriginIL
