Iscar ISCAR 5505155

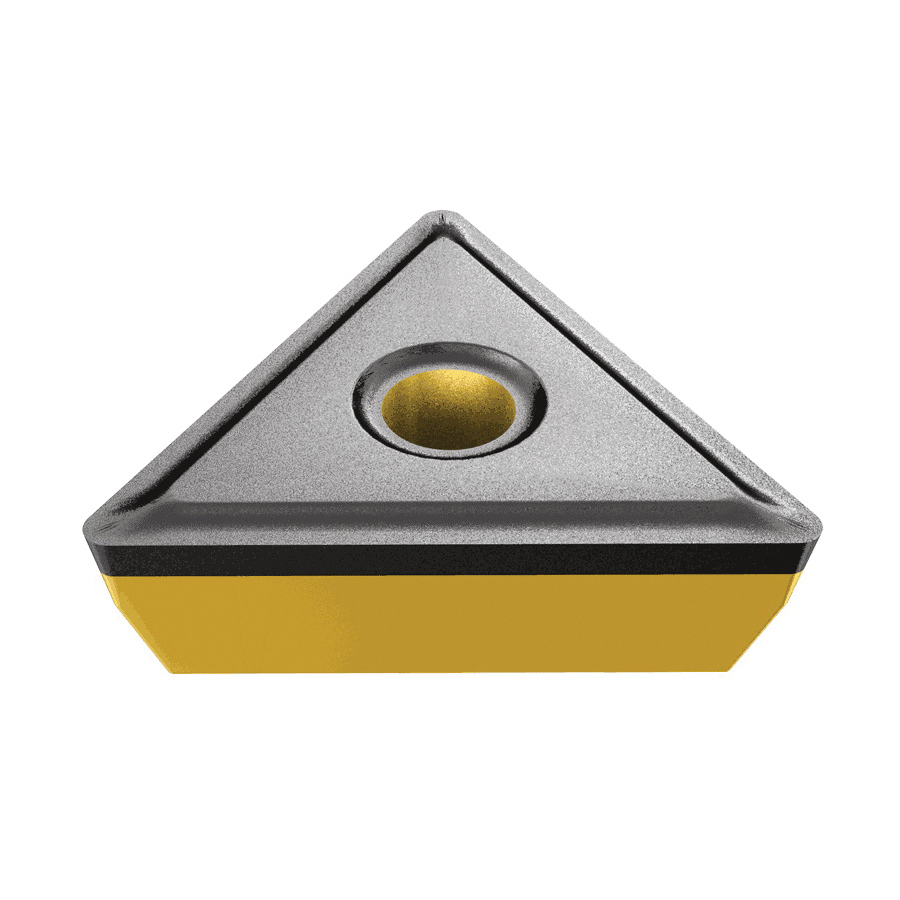

Iscar 5505155 1-Sided Turning Insert, ANSI Code: TPMR 322 IC907, TPMR Insert, Material Grade: H, K, M, N, P, S, 322 Insert, Triangular Shape, 16 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Tpmr 322 Ic907
Factory Order

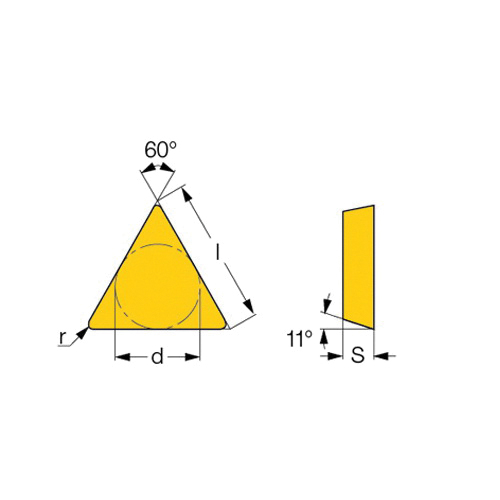

Iscar Turning Insert, 1-Sided, TPMR Insert, 322 Insert, Triangular, 4 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.18 mm Thickness, 16 Seat, Positive Rake, 0.8 mm Corner Radius, Manufacturers Grade: IC907, ANSI Code: TPMR 322 IC907, ISO Code: TPMR 160308 IC907, 60 deg Included Angle, 11 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive chipformer
- Low cutting forces
- Chipbreaker on one side without hole
Specifications
ApplicationInternal Turning and Finishing
ANSI CodeTPMR 322 IC907
Corner Radius0.8 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size322
Insert StyleTPMR
ISO CodeTPMR 160308 IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut4 mm
RakePositive
Relief Angle11 deg
Seat Size16
ShapeTriangular
Thickness3.18 mm
Type1-Sided
Additional Information
Country of OriginIL
