Iscar ISCAR 5505130

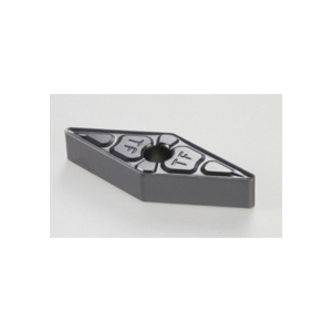

Iscar 5505130 2-Sided Turning Insert, ANSI Code: VNMG332TF IC907, VNMG Insert, Material Grade: H, K, M, N, P, S, 332 Insert, Rhombic Shape, 16 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Vnmg 332-tf Ic907
Factory Order
Iscar Turning Insert, 2-Sided, VNMG Insert, 332 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Positive Rake, TF Chipbreaker, 0.8 mm Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: IC907, ANSI Code: VNMG332TF IC907, ISO Code: VNMG 160408-TF IC907, 35 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- IC907 grade a tough sub-micron substrate, TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ANSI CodeVNMG332TF IC907
ChipbreakerTF
Corner Radius0.8 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter0.15 in
Included Angle35 deg
Inscribed Circle9.52 mm
Insert Size332
Insert StyleVNMG
ISO CodeVNMG 160408-TF IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle0 deg
Seat Size16
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
