Iscar ISCAR 5505012

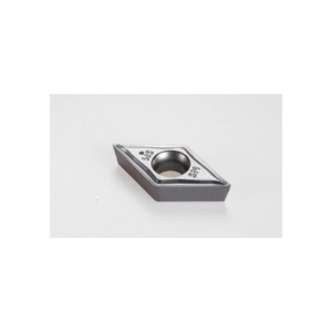

Iscar 5505012 ISOTURN Turning Insert, ANSI Code: DCMT 3-0-SM IC907, DCMT Insert, Material Grade: H, K, M, N, P, S, 3-0 Insert, Rhombic Shape, 11 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Dcmt 3-0-sm Ic907
Factory Order
Iscar Turning Insert, Series: ISOTURN, DCMT Insert, 3-0 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Positive Rake, SM Chipbreaker, 0.2 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC907, ANSI Code: DCMT 3-0-SM IC907, ISO Code: DCMT 11T302-SM IC907, 55 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive flank
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Chipbreaker on one side with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeDCMT 3-0-SM IC907
ChipbreakerSM
Corner Radius0.2 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter4.4 mm
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size3-0
Insert StyleDCMT
ISO CodeDCMT 11T302-SM IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
Additional Information
Country of OriginIL
