Iscar ISCAR 5505003

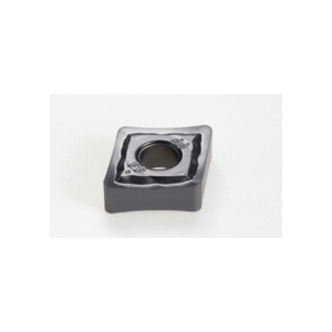

Iscar 5505003 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 433-PP IC907, CNMG Insert, Material Grade: H, K, M, N, P, S, 433 Insert, Rhombic Shape, 12 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Cnmg 433-pp Ic907
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 433 Insert, Rhombic, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, PP Chipbreaker, 1.2 mm Corner Radius, Manufacturers Grade: IC907, ANSI Code: CNMG 433-PP IC907, ISO Code: CNMG 120412-PP IC907, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive rake angle and sharp, positive radial edge
- IC907 grade a tough sub-micron substrate, TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ANSI CodeCNMG 433-PP IC907
ChipbreakerPP
Corner Radius1.2 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size433
Insert StyleCNMG
ISO CodeCNMG 120412-PP IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut4 mm
RakePositive
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
