Iscar ISCAR 5504980

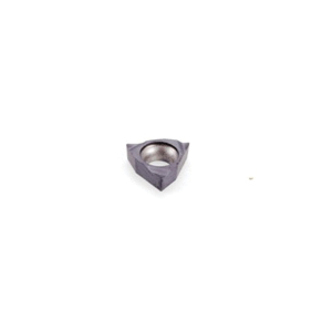

Iscar 5504980 ISOTURN Turning Insert, ANSI Code: WBGT 520-L IC908, WBGT Insert, Material Grade: H, K, M, P, S, 520 Insert, Trigon Shape, 06 Seat, Positive Rake, Left Hand Cutting, Carbide, Manufacturers Grade: IC908
Factory Order

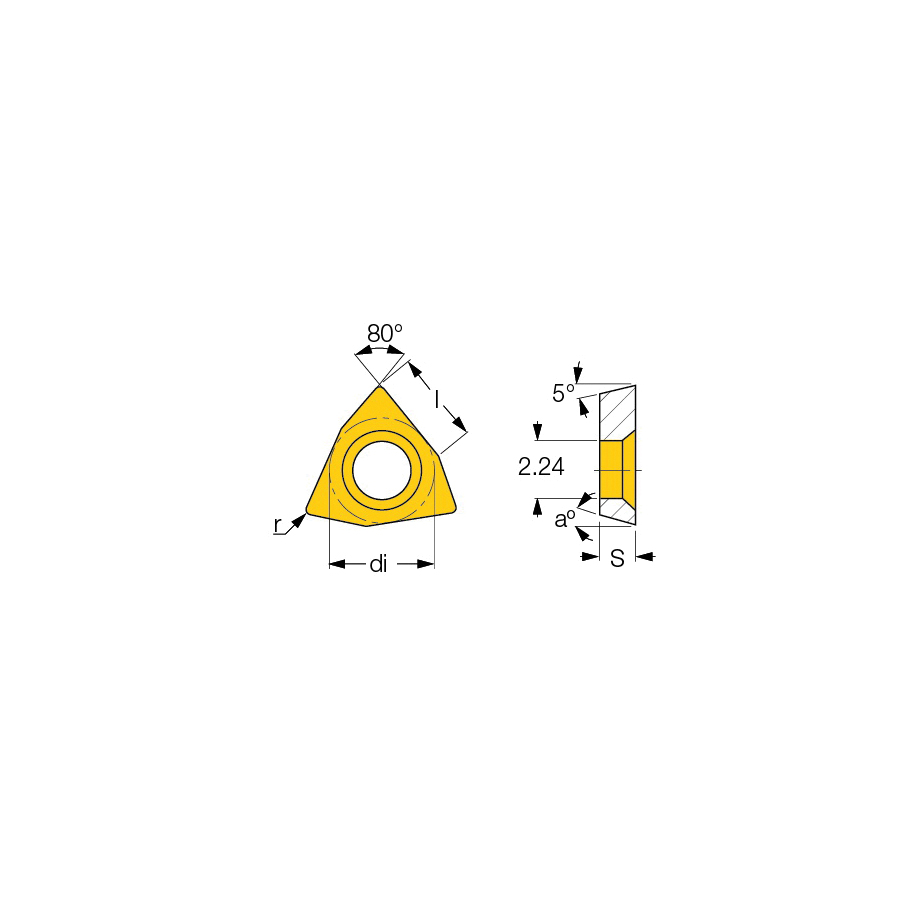

Iscar Turning Insert, Series: ISOTURN, WBGT Insert, 520 Insert, Trigon, 1 mm Maximum Depth of Cut, 3.97 mm Inscribed Circle, 1.59 mm Thickness, 06 Seat, Positive Rake, L Chipbreaker, 0.2 mm Corner Radius, 2.24 mm Hole Dia, Manufacturers Grade: IC908, ANSI Code: WBGT 520-L IC908, ISO Code: WBGT 060102L IC908, 80 deg Included Angle, 5 deg Relief Angle, Left Hand Cutting, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Positive flank inserts with a ground chipformer
- Used for finishing on miniature boring bars, provide excellent surface finish
- Suitable for a wide range of materials
- IC908 grade provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
- Chipbreaker on one side, with hole and countersink
Specifications
ANSI CodeWBGT 520-L IC908
ChipbreakerL
Corner Radius0.2 mm
Cutting DirectionLeft Hand
FinishPVD-TiAlN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Hole Diameter2.24 mm
Included Angle80 deg
Inscribed Circle3.97 mm
Insert Size520
Insert StyleWBGT
ISO CodeWBGT 060102L IC908
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut1 mm
RakePositive
Relief Angle5 deg
Seat Size06
SeriesISOTURN
ShapeTrigon
Thickness1.59 mm
