Iscar ISCAR 5504977

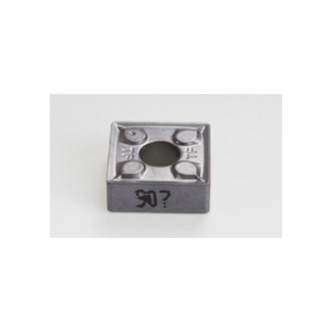

Iscar 5504977 2-Sided Turning Insert, ANSI Code: SNMG 432 TF IC907, SNMG Insert, Material Grade: H, K, M, N, P, S, 432 Insert, Squared Shape, 12 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Snmg 432-tf Ic907
Factory Order

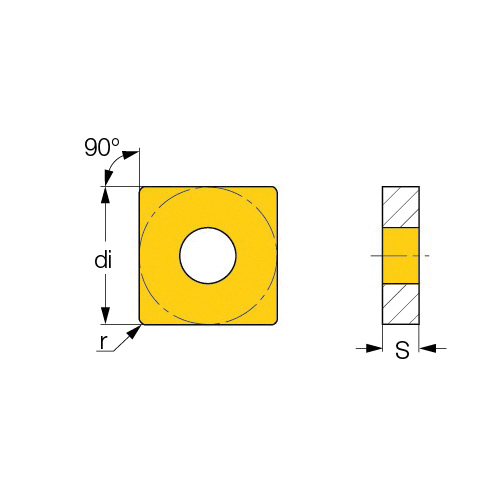

Iscar Turning Insert, 2-Sided, SNMG Insert, 432 Insert, Squared, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, 12 Seat, Positive Rake, TF Chipbreaker, 0.8 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: IC907, ANSI Code: SNMG 432 TF IC907, ISO Code: SNMG 120408-TF IC907, 90 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- IC907 grade a tough sub-micron substrate, TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ANSI CodeSNMG 432 TF IC907
ChipbreakerTF
Corner Radius0.8 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter0.203 in
Included Angle90 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleSNMG
ISO CodeSNMG 120408-TF IC907
Length12.7 mm
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut4 mm
RakePositive
Relief Angle0 deg
Seat Size12
ShapeSquared
Thickness4.76 mm
Type2-Sided
Width12.7 mm
Additional Information
Country of OriginIL
