Iscar ISCAR 5504912

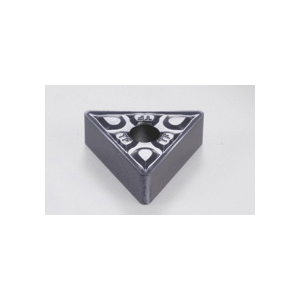

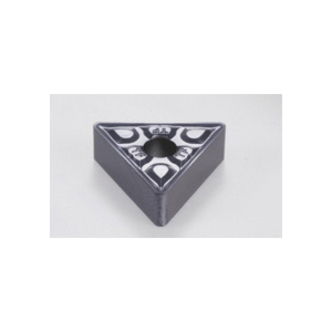

Iscar 5504912 2-Sided Turning Insert, ANSI Code: TNMG 332 TF IC907, TNMG Insert, Material Grade: H, K, M, N, P, S, 332 Insert, Triangular Shape, 16 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Tnmg 332-tf Ic907
Factory Order

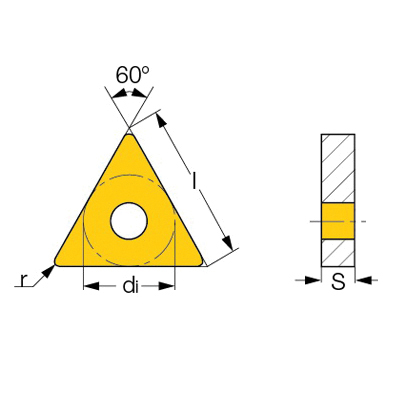

Iscar Turning Insert, 2-Sided, TNMG Insert, 332 Insert, Triangular, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Positive Rake, TF Chipbreaker, 0.8 mm Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: IC907, ANSI Code: TNMG 332 TF IC907, ISO Code: TNMG 160408-TF IC907, 60 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- IC907 grade a tough sub-micron substrate, TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ANSI CodeTNMG 332 TF IC907
ChipbreakerTF
Corner Radius0.8 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter0.15 in
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size332
Insert StyleTNMG
ISO CodeTNMG 160408-TF IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut3 mm
RakePositive
Relief Angle0 deg
Seat Size16
ShapeTriangular
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
