Iscar ISCAR 5504880

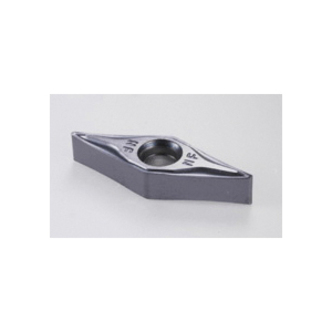

Iscar 5504880 ISOTURN 2-Sided Turning Insert, ANSI Code: VNMG 2.5-1-NF IC907, VNMG Insert, Material Grade: H, K, M, N, P, S, 2.5-1 Insert, Rhombic Shape, 12 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Vnmg 2.5-1-nf Ic907
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, VNMG Insert, 2.5-1 Insert, Rhombic, 2 mm Maximum Depth of Cut, 7.15 mm Inscribed Circle, 3.97 mm Thickness, 12 Seat, Positive Rake, NF Chipbreaker, 0.4 mm Corner Radius, 0.11 in Hole Dia, Manufacturers Grade: IC907, ANSI Code: VNMG 2.5-1-NF IC907, ISO Code: VNMG 12T304-NF IC907, 35 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Low cutting forces due to very sharp edge and positive rake
- Chipbreaker on both sides, with hole
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeVNMG 2.5-1-NF IC907
ChipbreakerNF
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter0.11 in
Included Angle35 deg
Inscribed Circle7.15 mm
Insert Size2.5-1
Insert StyleVNMG
ISO CodeVNMG 12T304-NF IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut2 mm
RakePositive
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
Type2-Sided
Additional Information
Country of OriginIL
