Iscar ISCAR 5504879

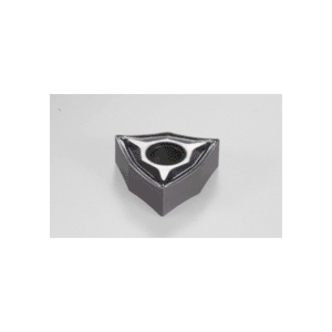

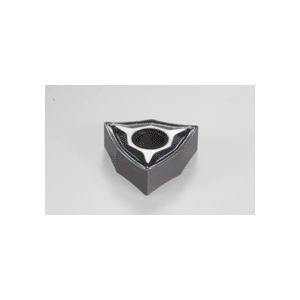

Iscar 5504879 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 3-1-NF IC907, WNMG Insert, Material Grade: H, K, M, N, P, S, 3-1 Insert, Trigon Shape, 06 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Wnmg 3-1-nf Ic907
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 3-1 Insert, Trigon, 2.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 06 Seat, Positive Rake, NF Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC907, ANSI Code: WNMG 3-1-NF IC907, ISO Code: WNMG 06T304-NF IC907, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Low cutting forces due to very sharp edge and positive rake
- Chipbreaker on both sides with hole
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeWNMG 3-1-NF IC907
ChipbreakerNF
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size3-1
Insert StyleWNMG
ISO CodeWNMG 06T304-NF IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle0 deg
Seat Size06
SeriesISOTURN
ShapeTrigon
Thickness3.97 mm
Type2-Sided
