Iscar ISCAR 5504825

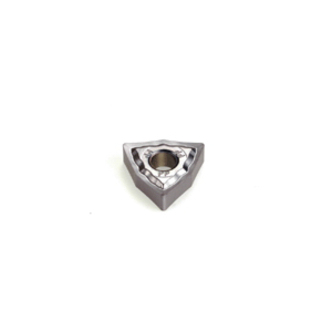

Iscar 5504825 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 432-PP IC907, WNMG Insert, Material Grade: H, K, M, N, P, S, 432 Insert, Trigon Shape, 08 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Wnmg 432-pp Ic907
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 432 Insert, Trigon, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, Positive Rake, PP Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC907, ANSI Code: WNMG 432-PP IC907, ISO Code: WNMG 080408-PP IC907, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Double-sided trigon inserts with a positive rake angle and sharp, positive radial edge
- Chipbreaker on both sides with hole
Specifications
ANSI CodeWNMG 432-PP IC907
ChipbreakerPP
Corner Radius0.8 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleWNMG
ISO CodeWNMG 080408-PP IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut4 mm
RakePositive
Relief Angle0 deg
Seat Size08
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
