Iscar ISCAR 5504737

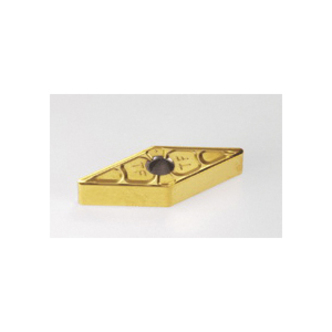

Iscar 5504737 ISOTURN 2-Sided Turning Insert, ANSI Code: VNMG 332-TF IC507, VNMG Insert, Material Grade: H, M, P, S, 332 Insert, Rhombic Shape, 16 Seat, Positive Rake, For Use On Steel, Stainless Steel, Hardened Steel and High Temperature Alloys, Carbide
Invoice description:
Vnmg 332-tf Ic507
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, VNMG Insert, 332 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Positive Rake, TF Chipbreaker, 0.8 mm Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: IC507, ANSI Code: VNMG 332-TF IC507, ISO Code: VNMG 160408-TF IC507, 35 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiCN+TiN Coated, Material Grade: H, M, P, S, For Use On: Steel, Stainless Steel, Hardened Steel and High Temperature Alloys
Features
- Positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- Chipbreaker on both sides with hole
Specifications
ApplicationMachining Applications
ANSI CodeVNMG 332-TF IC507
ChipbreakerTF
Corner Radius0.8 mm
FinishPVD-TiCN+TiN Coated
For Use OnSteel, Stainless Steel, Hardened Steel and High Temperature Alloys
Hole Diameter0.15 in

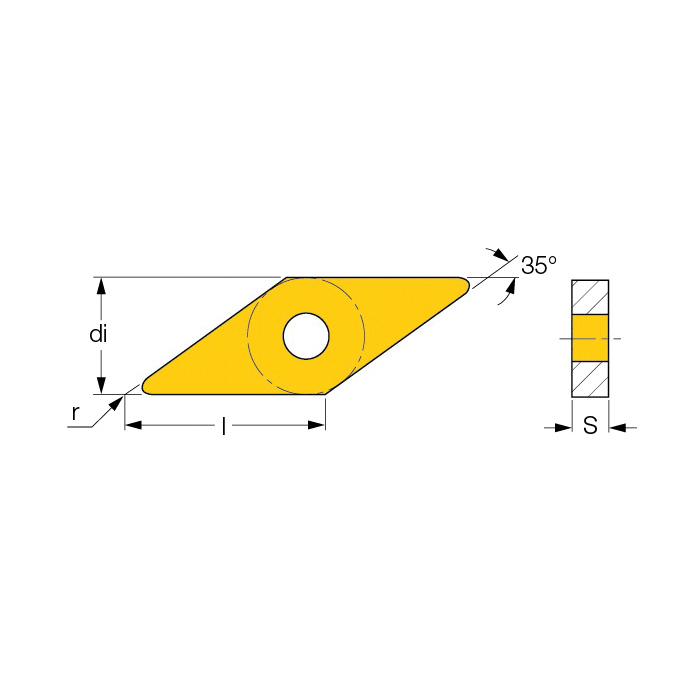

Included Angle35 deg
Inscribed Circle9.52 mm
Insert Size332
Insert StyleVNMG
ISO CodeVNMG 160408-TF IC507
Manufacturers GradeIC507
MaterialCarbide
Material GradeH, M, P, S
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle0 deg
Seat Size16
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
