Iscar ISCAR 5504730

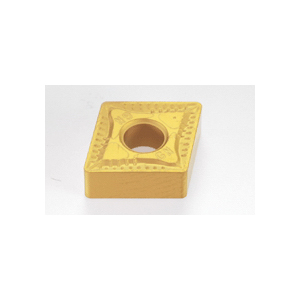

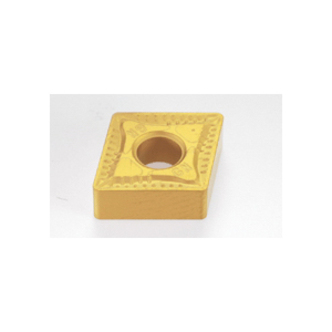

Iscar 5504730 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 432-GN IC9007, CNMG Insert, Material Grade: K, P, 432 Insert, Rhombic Shape, 12 Seat, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: IC9007

UNSPSC: 23242107
Manufacturer PN: 5504730
$12.64 EA
Factory Order
Estimated to ship in 14 days
QTY:

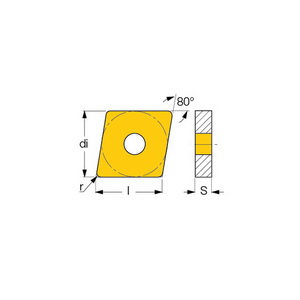

Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 432 Insert, Rhombic, 4.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, GN Chipbreaker, 0.8 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: IC9007, ANSI Code: CNMG 432-GN IC9007, ISO Code: CNMG 120408-GN IC9007, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

  • Features

  • Secure cutting edge
  • Chipbreaker on both sides with hole

Specifications

ApplicationMedium and Semi-Roughing
ANSI CodeCNMG 432-GN IC9007
ChipbreakerGN
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter0.203 in
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleCNMG
ISO CodeCNMG 120408-GN IC9007
Manufacturers GradeIC9007
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut4.5 mm
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
