Iscar ISCAR 5504410

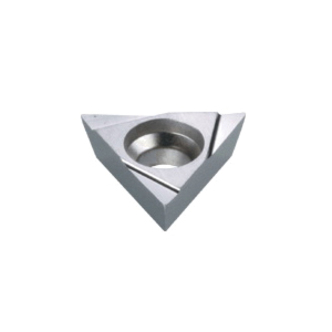

Iscar 5504410 Turning Insert, ANSI Code: TPGX 221-L IC20N, TPGX Insert, Material Grade: M, P, 221 Insert, Triangular Shape, 11 Seat, Positive Rake, Left Hand Cutting, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC20N
Invoice description:
Tpgx 221-l Ic20n
Factory Order

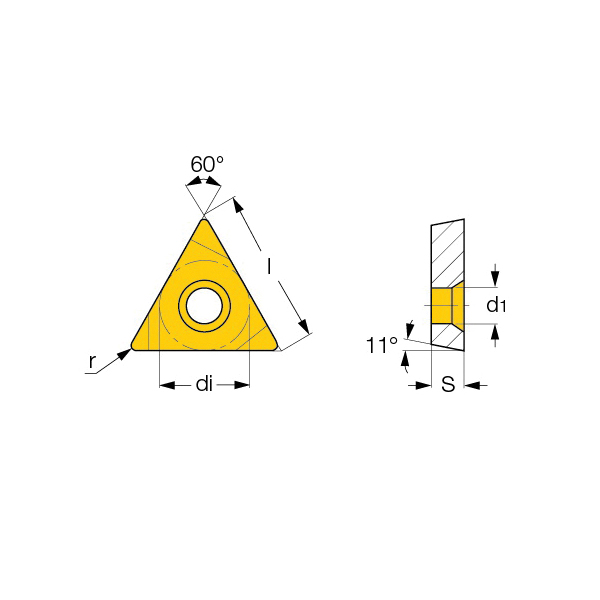

Iscar Turning Insert, TPGX Insert, 221 Insert, Triangular, 3 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 3.18 mm Thickness, 11 Seat, Positive Rake, L Chipbreaker, 0.4 mm Corner Radius, 3.5 mm Hole Dia, Manufacturers Grade: IC20N, ANSI Code: TPGX 221-L IC20N, ISO Code: TPGX 110304-L IC20N, 60 deg Included Angle, 11 deg Relief Angle, Left Hand Cutting, Carbide, Uncoated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Positive flank inserts with a ground chipformer
- Provides excellent surface finish
Specifications
ApplicationFinishing Applications
ANSI CodeTPGX 221-L IC20N
ChipbreakerL
Corner Radius0.4 mm
Cutting DirectionLeft Hand
FinishUncoated
For Use OnStainless Steel and Steel
Hole Diameter3.5 mm
Included Angle60 deg
Inscribed Circle6.35 mm
Insert Size221
Insert StyleTPGX
ISO CodeTPGX 110304-L IC20N
Manufacturers GradeIC20N
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3 mm
RakePositive
Relief Angle11 deg
Seat Size11
ShapeTriangular
Thickness3.18 mm
