Iscar ISCAR 5504268

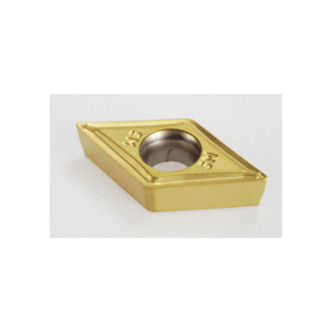

Iscar 5504268 ISOTURN 1-Sided Turning Insert, ANSI Code: DCMT 3-1SM IC507, DCMT Insert, Material Grade: H, M, P, S, 3-1 Insert, Rhombic Shape, 11 Seat, Positive Rake, For Use On Steel, Stainless Steel, Hardened Steel and High Temperature Alloys, Carbide
Invoice description:
Dcmt 3-1-sm Ic507 Turning Insert
Pack Size: 10
UNSPSC:
23242107
Manufacturer PN: 5504268
$15.70 EA
Factory OrderEstimated to ship in 14 days

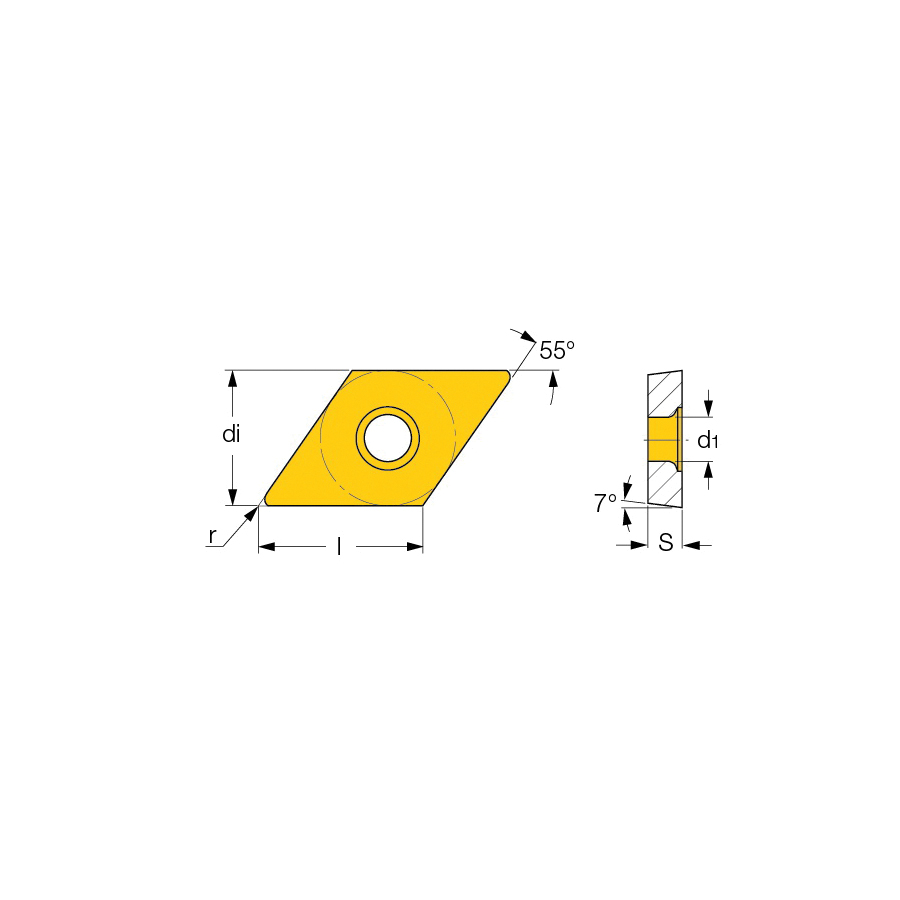

Iscar Turning Insert, 1-Sided, Series: ISOTURN, DCMT Insert, 3-1 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Positive Rake, SM Chipbreaker, 0.4 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC507, ANSI Code: DCMT 3-1SM IC507, ISO Code: DCMT 11T304-SM IC507, 55 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiCN+TiN Coated, Material Grade: H, M, P, S, For Use On: Steel, Stainless Steel, Hardened Steel and High Temperature Alloys
Features
- Positive flank
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- IC507 grade a tough sub-micron substrate, TiCN and TiN PVD coated
- Suitable for low-to-medium cutting speeds
- Used for machining heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ApplicationMachining Applications
ANSI CodeDCMT 3-1SM IC507
ChipbreakerSM
Corner Radius0.4 mm
FinishPVD-TiCN+TiN Coated
For Use OnSteel, Stainless Steel, Hardened Steel and High Temperature Alloys
Hole Diameter4.4 mm
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size3-1
Insert StyleDCMT
ISO CodeDCMT 11T304-SM IC507
Manufacturers GradeIC507
MaterialCarbide
Material GradeH, M, P, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
Type1-Sided
Additional Information
Country of OriginIL
