Iscar ISCAR 5504095

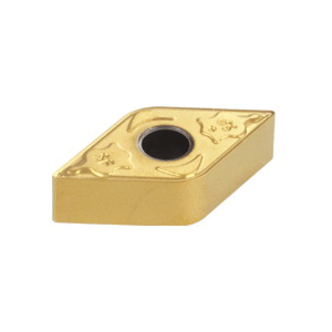

Iscar 5504095 ISOTURN 2-Sided Turning Insert, ANSI Code: DNMG 331-SF IC570, DNMG Insert, Material Grade: M, P, 331 Insert, Rhombic Shape, 11 Seat, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC570
Invoice description:
Dnmg 331-sf Ic570
Factory Order

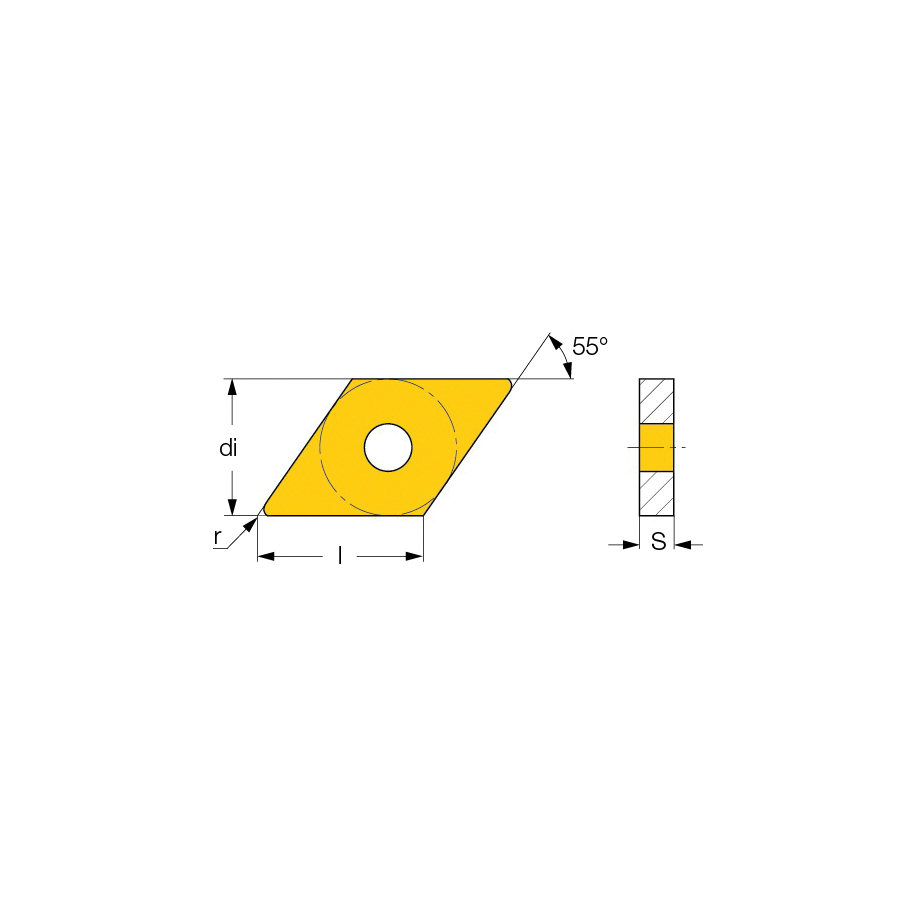

Iscar Turning Insert, 2-Sided, Series: ISOTURN, DNMG Insert, 331 Insert, Rhombic, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 11 Seat, SF Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC570, ANSI Code: DNMG 331-SF IC570, ISO Code: DNMG 110404-SF IC570, 55 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Controls chip flow at very low feed and depth of cut
- Excellent crater wear resistance
- Chipbreaker on both sides with hole
Specifications
ApplicationSuper Finishing Applications
ANSI CodeDNMG 331-SF IC570
ChipbreakerSF
Corner Radius0.4 mm
FinishPVD-TiCN+TiN Coated
For Use OnStainless Steel and Steel
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size331
Insert StyleDNMG
ISO CodeDNMG 110404-SF IC570
Manufacturers GradeIC570
MaterialCarbide
Material GradeM, P
Relief Angle0 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
