Iscar ISCAR 5503816

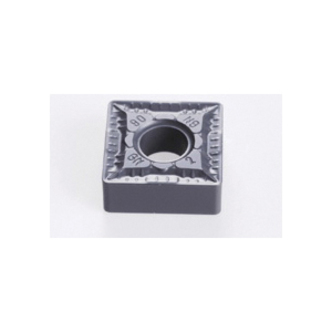

Iscar 5503816 ISOTURN 2-Sided Turning Insert, ANSI Code: SNMG 432-GN IC20, SNMG Insert, Material Grade: H, K, M, N, S, 432 Insert, Squared Shape, 12 Seat, For Use On Stainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum, Carbide
Invoice description:
Snmg 432-gn Ic20
Factory Order

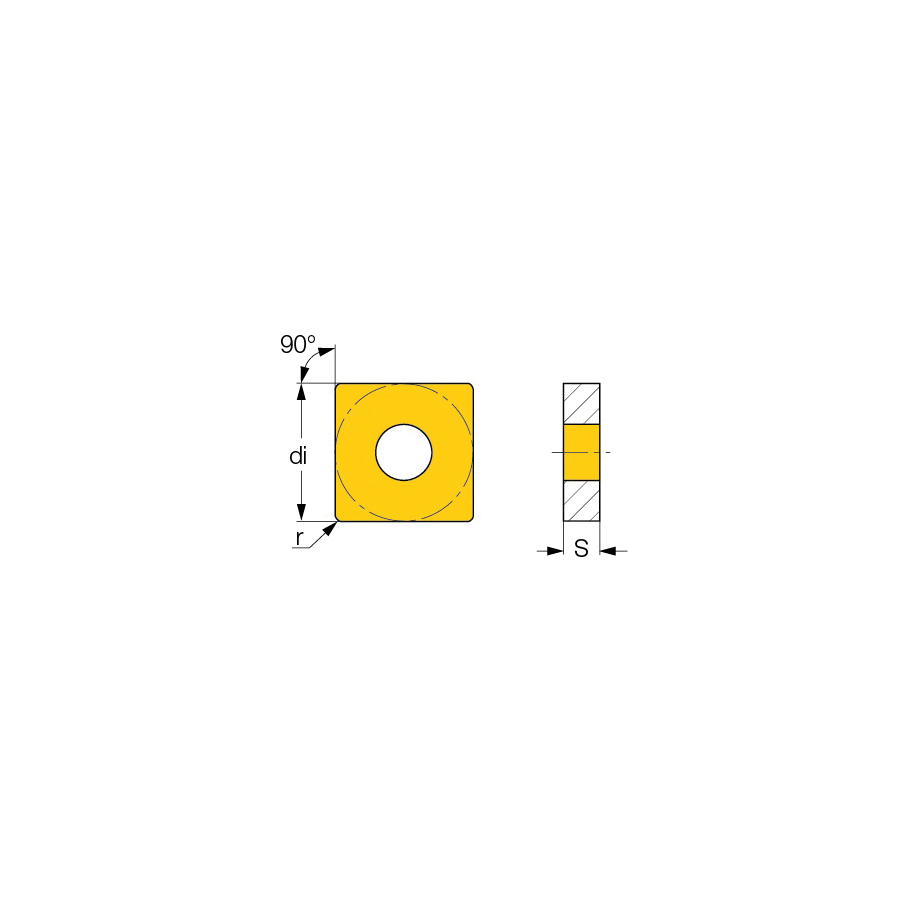

Iscar Turning Insert, 2-Sided, Series: ISOTURN, SNMG Insert, 432 Insert, Squared, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, 12 Seat, GN Chipbreaker, 0.8 mm Corner Radius, 5.1562 mm Hole Dia, Manufacturers Grade: IC20, ANSI Code: SNMG 432-GN IC20, ISO Code: SNMG 120408-GN IC20, 90 deg Included Angle, 0 deg Relief Angle, Carbide, Uncoated, Material Grade: H, K, M, N, S, For Use On: Stainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Secure cutting edge
- Chipbreaker on both sides, with hole
Specifications
ApplicationMedium and Semi-Roughing
ANSI CodeSNMG 432-GN IC20
ChipbreakerGN
Corner Radius0.8 mm
FinishUncoated
For Use OnStainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter5.1562 mm
Included Angle90 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleSNMG
ISO CodeSNMG 120408-GN IC20
Length12.7 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut5 mm
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeSquared
Thickness4.76 mm
Type2-Sided
Width12.7 mm
Additional Information
Country of OriginIL
