Iscar ISCAR 5503790

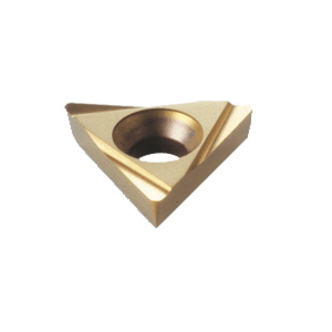

Iscar 5503790 ISOTURN Turning Insert, ANSI Code: TPGH 321-L IC570, TPGH Insert, Material Grade: M, P, 321 Insert, Triangular Shape, 16 Seat, Positive Rake, Left Hand Cutting, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC570
Invoice description:
Tpgh 321-l Ic570
Factory Order

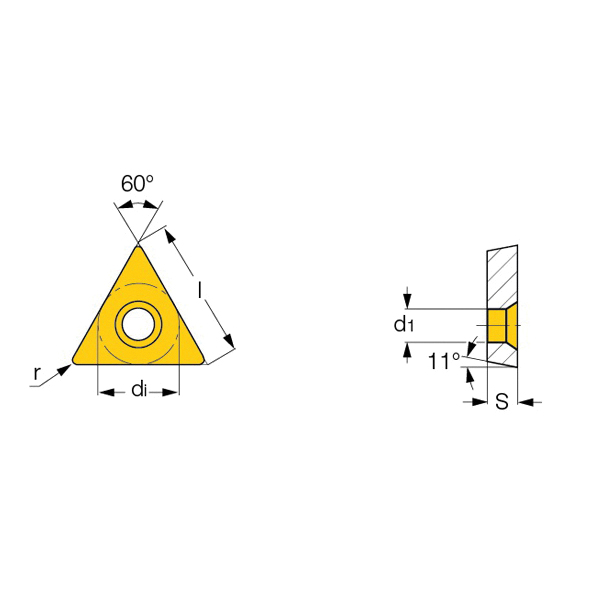

Iscar Turning Insert, Series: ISOTURN, TPGH Insert, 321 Insert, Triangular, 4 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.18 mm Thickness, 16 Seat, Positive Rake, L Chipbreaker, 0.4 mm Corner Radius, 4.3 mm Hole Dia, Manufacturers Grade: IC570, ANSI Code: TPGH 321-L IC570, ISO Code: TPGH 160304-L IC570, 60 deg Included Angle, 11 deg Relief Angle, Left Hand Cutting, Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Positive flank inserts with a ground chipformer
- Chipbreaker on one side, with hole and countersink
Specifications
ApplicationFor finishing applications
ANSI CodeTPGH 321-L IC570
ChipbreakerL
Corner Radius0.4 mm
Cutting DirectionLeft Hand
FinishPVD-TiCN+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter4.3 mm
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size321
Insert StyleTPGH
ISO CodeTPGH 160304-L IC570
Manufacturers GradeIC570
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut4 mm
RakePositive
Relief Angle11 deg
Seat Size16
SeriesISOTURN
ShapeTriangular
Thickness3.18 mm
Additional Information
Country of OriginIL
