Iscar ISCAR 5503778

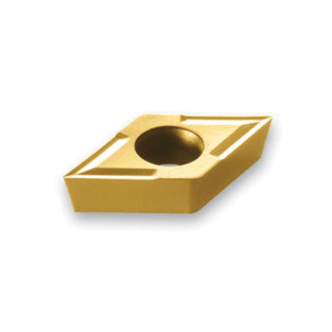

Iscar 5503778 ISOTURN Turning Insert, ANSI Code: DCMT 3-0 IC520N, DCMT Insert, Material Grade: M, P, 3-0 Insert, Rhombic Shape, 11 Seat, Positive Rake, For Use On Stainless Steel and Steel, Cermet, Manufacturers Grade: IC520N
Factory Order

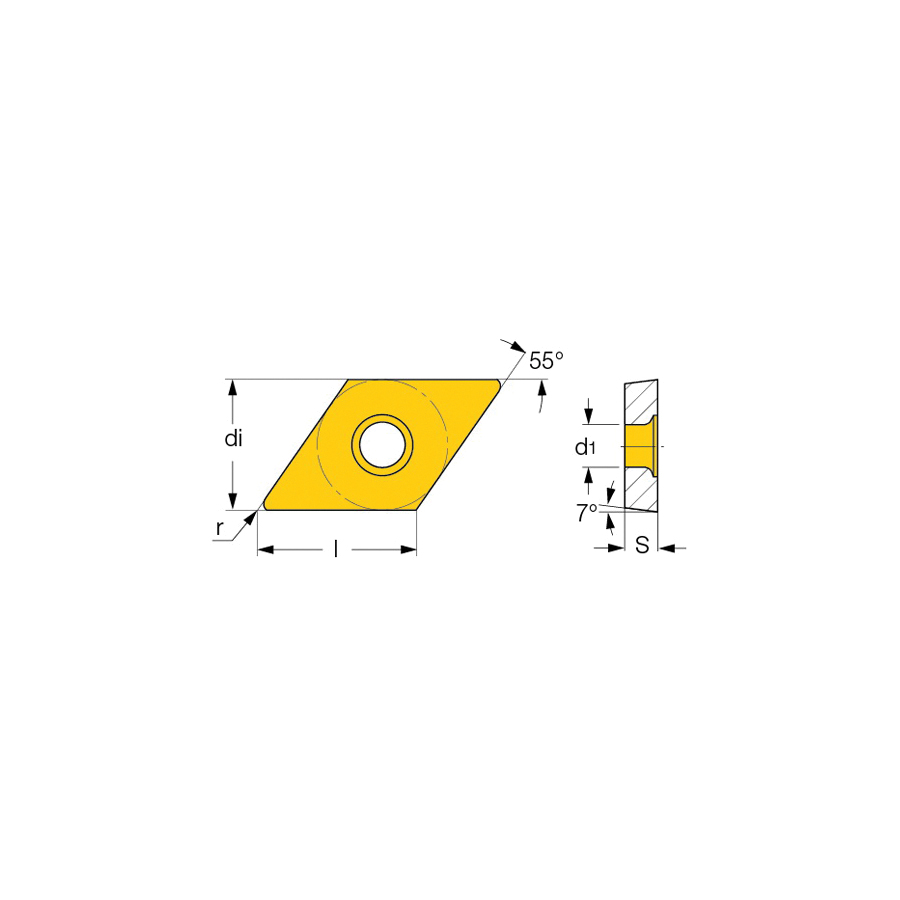

Iscar Turning Insert, Series: ISOTURN, DCMT Insert, 3-0 Insert, Rhombic, 2 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Positive Rake, 0.2 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC520N, ANSI Code: DCMT 3-0 IC520N, ISO Code: DCMT 11T302 IC520N, 55 deg Included Angle, 7 deg Relief Angle, Cermet, PVD-TiCN+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Positive clearance for finishing applications
- Wear resistant, prevents built-up edge
- Chipbreaker on one side with hole and countersink
Specifications
ANSI CodeDCMT 3-0 IC520N
Corner Radius0.2 mm
FinishPVD-TiCN+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter4.4 mm
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size3-0
Insert StyleDCMT
ISO CodeDCMT 11T302 IC520N
Manufacturers GradeIC520N
MaterialCermet
Material GradeM, P
Maximum Depth of Cut2 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
