Iscar ISCAR 5503730

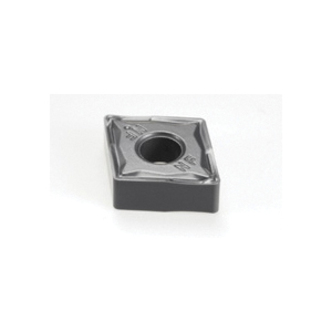

Iscar 5503730 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 432-NF IC20N, CNMG Insert, Material Grade: M, P, 432 Insert, Rhombic Shape, 12 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC20N
Invoice description:
Cnmg 432-nf Ic20n
Factory Order

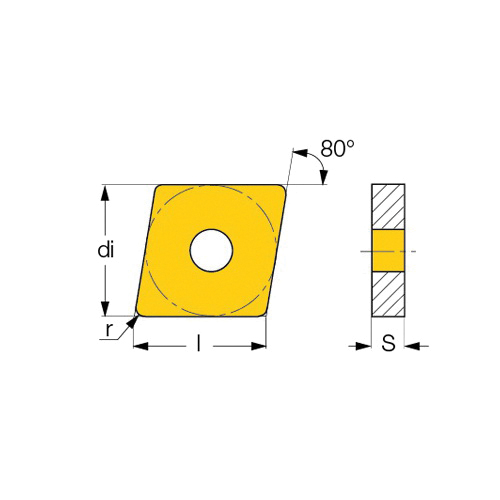

Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 432 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, NF Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC20N, ANSI Code: CNMG 432-NF IC20N, ISO Code: CNMG 120408-NF IC20N, 80 deg Included Angle, 0 deg Relief Angle, Carbide, Uncoated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Low cutting forces due to very sharp edge and positive rake
- IC20N grade a cermet grade, used for grooving and turning applications
- Recommended for semi-finishing and finishing operations when excellent surface finish is required
- Wear resistant, prevents built-up edge
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeCNMG 432-NF IC20N
ChipbreakerNF
Corner Radius0.8 mm
FinishUncoated
For Use OnStainless Steel and Steel
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleCNMG
ISO CodeCNMG 120408-NF IC20N
Manufacturers GradeIC20N
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
