Iscar ISCAR 5503676

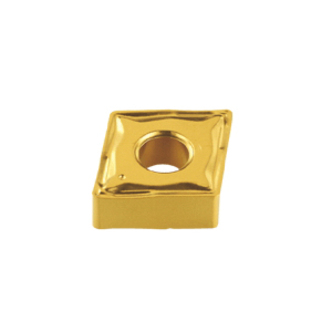

Iscar 5503676 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 431-NF IC530N, CNMG Insert, Material Grade: M, P, 431 Insert, Rhombic Shape, 12 Seat, Positive Rake, For Use On Stainless Steel and Steel, Cermet, Manufacturers Grade: IC530N
Invoice description:
Cnmg 431-nf Ic530n
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 431 Insert, Rhombic, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, NF Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC530N, ANSI Code: CNMG 431-NF IC530N, ISO Code: CNMG 120404-NF IC530N, 80 deg Included Angle, 0 deg Relief Angle, Cermet, PVD-TiCN+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Low cutting forces due to very sharp edge and positive rake
- Chipbreaker on both sides with hole
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeCNMG 431-NF IC530N
ChipbreakerNF
Corner Radius0.4 mm
FinishPVD-TiCN+TiN Coated
For Use OnStainless Steel and Steel
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size431
Insert StyleCNMG
ISO CodeCNMG 120404-NF IC530N
Manufacturers GradeIC530N
MaterialCermet
Material GradeM, P
Maximum Depth of Cut4 mm
RakePositive
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
