Iscar ISCAR 5503674

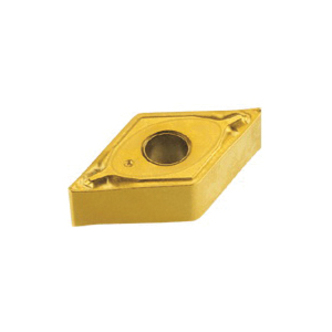

Iscar 5503674 ISOTURN 2-Sided Turning Insert, ANSI Code: DNMG 332-NF IC530N, DNMG Insert, Material Grade: M, P, 332 Insert, Rhombic Shape, 11 Seat, Positive Rake, For Use On Stainless Steel and Steel, Cermet, Manufacturers Grade: IC530N
Invoice description:
Dnmg 332-nf Ic530n
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, DNMG Insert, 332 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 11 Seat, Positive Rake, NF Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC530N, ANSI Code: DNMG 332-NF IC530N, ISO Code: DNMG 110408-NF IC530N, 55 deg Included Angle, 0 deg Relief Angle, Cermet, PVD-TiCN+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Low cutting forces due to very sharp edge and positive rake
- Wear resistant, prevents built-up edge
- Chipbreaker on both sides with hole
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeDNMG 332-NF IC530N
ChipbreakerNF
Corner Radius0.8 mm
FinishPVD-TiCN+TiN Coated
For Use OnStainless Steel and Steel
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size332
Insert StyleDNMG
ISO CodeDNMG 110408-NF IC530N
Manufacturers GradeIC530N
MaterialCermet
Material GradeM, P
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle0 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
