Iscar ISCAR 5503639

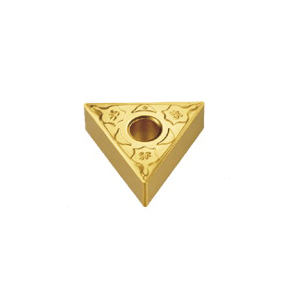

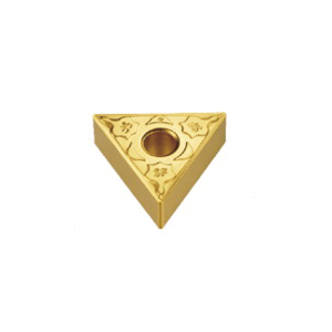

Iscar 5503639 ISOTURN 2-Sided Turning Insert, ANSI Code: TNMG-331-SF IC530N, TNMG Insert, Material Grade: M, P, 331 Insert, Triangular Shape, 16 Seat, For Use On Stainless Steel and Steel, Cermet, Manufacturers Grade: IC530N
Invoice description:
Tnmg 331-sf Ic530n
Factory Order

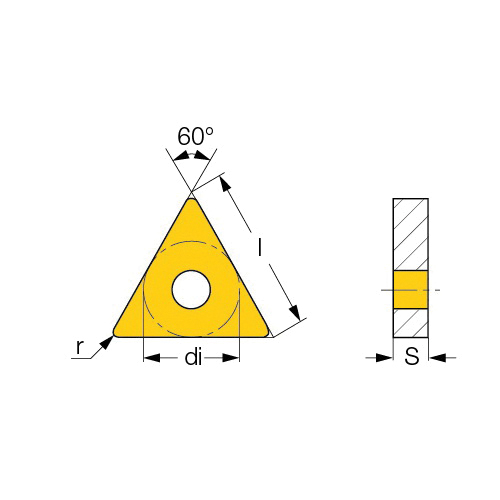

Iscar Turning Insert, 2-Sided, Series: ISOTURN, TNMG Insert, 331 Insert, Triangular, 2 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, SF Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC530N, ANSI Code: TNMG-331-SF IC530N, ISO Code: TNMG 160404-SF IC530N, 60 deg Included Angle, 0 deg Relief Angle, Cermet, PVD-TiCN+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Controls chip flow at very low feed and depth of cut
- Excellent crater wear resistance
- IC530N grade a cermet grade, TiCN and TiN PVD coated
- Used for high speed semi-finishing and finishing applications with excellent surface finish
- Wear resistant, prevents built-up edge
Specifications
ApplicationSuper Finishing Applications
ANSI CodeTNMG-331-SF IC530N
ChipbreakerSF
Corner Radius0.4 mm
FinishPVD-TiCN+TiN Coated
For Use OnStainless Steel and Steel
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size331
Insert StyleTNMG
ISO CodeTNMG 160404-SF IC530N
Manufacturers GradeIC530N
MaterialCermet
Material GradeM, P
Maximum Depth of Cut2 mm
Relief Angle0 deg
Seat Size16
SeriesISOTURN
ShapeTriangular
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
